Description

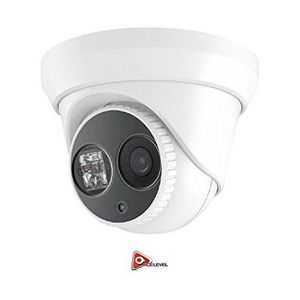

Camera Resolution: 4.1MP ● Camera Technology: IP / Network ● Camera Housing: Turret ● Image Sensor: 1/3" Progressive Scan CMOS ● Min. Illumination: 0.01Lux @ (F1.2, AGC ON), 0 Lux with IR ● Shutter Speed: 1/3 s to 1/10,000 s ● Lens: 2.8mm ● Lens Mount: M12 ● Day & Night: IR cut filter with auto switch ● DNR: 3D DNR ● Wide Dynamic Range: 120dB ● Angle Adjustment: Pan: 0° ~ 360°, Tilt: 0° ~ 75°, Rotation: 0° ~ 360° ● Video Compression: H.264 / MJPEG/H.264 Zip+ ● H.264 Type: Main Profile ● Video Bit Rate: 32 Kbps ~ 8 Mbps ● Dual Streams: Support ● Max. Resolution: 2688×1520 ● Frame Rate: 60Hz: 20fps (2688×1520), 30fps (1920×1080), 30fps(1280×720); 50Hz: 20fps (2688×1520), 25fps(1920×1080), 25fps(1280×720) ● Image Setting: Rotate Mode, Saturation, Brightness, Contrast; Sharpness adjustable by client software or web browser ● BLC: Support, zone configurable ● ROI Codec: Support ● Network Storage: NAS (Support NFS, SMB/CIFS), ANR ● Alarm Trigger: Motion detection, Tampering alarm, Network disconnect, IP address conflict, Storage exception ● Protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour ● General: One-key reset, Flash-prevention, dual stream, heartbeat, mirror, password protection, privacy mask, watermark, IP address filtering, Anonymous access ● Standard: ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI ● Communication Interface: 1 RJ45 10M/100M Ethernet port ● Reset: Yes ● Working Temperature/ Humidity: -22 °F ~ 140 °F (-30 °C ~ 60 °C) ● Humidity 95% or less (non-condensing) ● Power Supply: DC12V ± 10%, PoE (802.3af) ● Power Consumption: Max. 5.5W (Max. 7.5W with ICR on) ● IR Range: Up to 100ft (30 meters) ● Weather Proof Ratings: IP66 ● Dimensions: Φ5.0" × 3.8" (Φ127×97.5mm) ● Weight: 1.5 lbs (670g)
