Description
CMIP7452-M
Camera
Min. Illumination: 0.01Lux @ (F1.2, AGC ON), 0.014 Lux @ (F1.4, AGC ON), 0 Lux with IR
Shutter Speed: 1/3 s to 1/10,000 s
Slow Shutter: Support
Lens Mount: M12
Day & Night: IR cut filter with auto switch
Angle Adjustment: Pan: 0-355°, Tilt: 0-75°, Rotation: 0-355°
Compression Standard
H.264 Type: Main Profile
Video Bit Rate: 256 Kbps~16 Mbps
Dual Streams: Support
Max. Resolution: 2560x1920
Frame Rate: 60Hz: 20fps (2560x1920), 30fps (2048x1536), 30fps(1920x1080), 30fps(1280x720) 50Hz: 20fps (2560x1920), 25fps (2048x1536), 25fps(1920x1080), 25fps(1280x720)
Sub Stream: 60Hz: 30fps (352x240, 640x480) 50Hz: 25fps (352x288, 640x480)
Others: Saturation, Brightness, Contrast adjustable by client software or web browser, Mirror, BLC, ROI, Dual Stream, Anti-Flicker, Privacy Mask
Network
Network Storage: NAS (Support NFS,SMB/CIFS), ANR
Alarm Trigger: Motion detection, Tampering alarm, Network disconnect, IP address conflict, Storage exception
Protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
General: Password Protection, IP Address Filtering, Anonymous Access, Watermark
Standard: ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI
Interface
Communication Interface: 1 RJ45 10M/100M Ethernet port
On-board Storage: Built-in Micro SD/SDHC/SDXC slot
Reset: Yes
General
Working Temperature/Humidity: -22~140°F; Humidity 95% or less (non-condensing)
Power Supply: DC12V ± 10%, PoE (802.3af)
Power Consumption: Max. 5W
IR Range: Approx. 100ft
Weather Proof Ratings: IP66
Impact Protection: IK10
Dimensions: Φ 4.4" x 3.2"
Weight: 1.1lbs
Camera
Min. Illumination: 0.01Lux @ (F1.2, AGC ON), 0.014 Lux @ (F1.4, AGC ON), 0 Lux with IR
Shutter Speed: 1/3 s to 1/10,000 s
Slow Shutter: Support
Lens Mount: M12
Day & Night: IR cut filter with auto switch
Angle Adjustment: Pan: 0-355°, Tilt: 0-75°, Rotation: 0-355°
Compression Standard
H.264 Type: Main Profile
Video Bit Rate: 256 Kbps~16 Mbps
Dual Streams: Support
Max. Resolution: 2560x1920
Frame Rate: 60Hz: 20fps (2560x1920), 30fps (2048x1536), 30fps(1920x1080), 30fps(1280x720) 50Hz: 20fps (2560x1920), 25fps (2048x1536), 25fps(1920x1080), 25fps(1280x720)
Sub Stream: 60Hz: 30fps (352x240, 640x480) 50Hz: 25fps (352x288, 640x480)
Others: Saturation, Brightness, Contrast adjustable by client software or web browser, Mirror, BLC, ROI, Dual Stream, Anti-Flicker, Privacy Mask
Network
Network Storage: NAS (Support NFS,SMB/CIFS), ANR
Alarm Trigger: Motion detection, Tampering alarm, Network disconnect, IP address conflict, Storage exception
Protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
General: Password Protection, IP Address Filtering, Anonymous Access, Watermark
Standard: ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI
Interface
Communication Interface: 1 RJ45 10M/100M Ethernet port
On-board Storage: Built-in Micro SD/SDHC/SDXC slot
Reset: Yes
General
Working Temperature/Humidity: -22~140°F; Humidity 95% or less (non-condensing)
Power Supply: DC12V ± 10%, PoE (802.3af)
Power Consumption: Max. 5W
IR Range: Approx. 100ft
Weather Proof Ratings: IP66
Impact Protection: IK10
Dimensions: Φ 4.4" x 3.2"
Weight: 1.1lbs

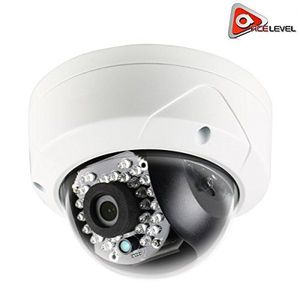

LTS Platinum Mini Dome Network IP Camera: 5MP, 4mm Fixed Lens, 3D DNR, DWDR, BLC, VCA, 30 IR LEDs up to 100ft, H.264 Zip+, 3-Axis Adjustment, IK10, IP66, DC 12V, PoE - CMIP7452-M
Current Price
$212.99
Average
$210.59
Min Price
$190
Max Price
$213
Price dynamics
1%
Description
CMIP7452-M
Camera
Min. Illumination: 0.01Lux @ (F1.2, AGC ON), 0.014 Lux @ (F1.4, AGC ON), 0 Lux with IR
Shutter Speed: 1/3 s to 1/10,000 s
Slow Shutter: Support
Lens Mount: M12
Day & Night: IR cut filter with auto switch
Angle Adjustment: Pan: 0-355°, Tilt: 0-75°, Rotation: 0-355°
Compression Standard
H.264 Type: Main Profile
Video Bit Rate: 256 Kbps~16 Mbps
Dual Streams: Support
Max. Resolution: 2560x1920
Frame Rate: 60Hz: 20fps (2560x1920), 30fps (2048x1536), 30fps(1920x1080), 30fps(1280x720) 50Hz: 20fps (2560x1920), 25fps (2048x1536), 25fps(1920x1080), 25fps(1280x720)
Sub Stream: 60Hz: 30fps (352x240, 640x480) 50Hz: 25fps (352x288, 640x480)
Others: Saturation, Brightness, Contrast adjustable by client software or web browser, Mirror, BLC, ROI, Dual Stream, Anti-Flicker, Privacy Mask
Network
Network Storage: NAS (Support NFS,SMB/CIFS), ANR
Alarm Trigger: Motion detection, Tampering alarm, Network disconnect, IP address conflict, Storage exception
Protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
General: Password Protection, IP Address Filtering, Anonymous Access, Watermark
Standard: ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI
Interface
Communication Interface: 1 RJ45 10M/100M Ethernet port
On-board Storage: Built-in Micro SD/SDHC/SDXC slot
Reset: Yes
General
Working Temperature/Humidity: -22~140°F; Humidity 95% or less (non-condensing)
Power Supply: DC12V ± 10%, PoE (802.3af)
Power Consumption: Max. 5W
IR Range: Approx. 100ft
Weather Proof Ratings: IP66
Impact Protection: IK10
Dimensions: Φ 4.4" x 3.2"
Weight: 1.1lbs
Camera
Min. Illumination: 0.01Lux @ (F1.2, AGC ON), 0.014 Lux @ (F1.4, AGC ON), 0 Lux with IR
Shutter Speed: 1/3 s to 1/10,000 s
Slow Shutter: Support
Lens Mount: M12
Day & Night: IR cut filter with auto switch
Angle Adjustment: Pan: 0-355°, Tilt: 0-75°, Rotation: 0-355°
Compression Standard
H.264 Type: Main Profile
Video Bit Rate: 256 Kbps~16 Mbps
Dual Streams: Support
Max. Resolution: 2560x1920
Frame Rate: 60Hz: 20fps (2560x1920), 30fps (2048x1536), 30fps(1920x1080), 30fps(1280x720) 50Hz: 20fps (2560x1920), 25fps (2048x1536), 25fps(1920x1080), 25fps(1280x720)
Sub Stream: 60Hz: 30fps (352x240, 640x480) 50Hz: 25fps (352x288, 640x480)
Others: Saturation, Brightness, Contrast adjustable by client software or web browser, Mirror, BLC, ROI, Dual Stream, Anti-Flicker, Privacy Mask
Network
Network Storage: NAS (Support NFS,SMB/CIFS), ANR
Alarm Trigger: Motion detection, Tampering alarm, Network disconnect, IP address conflict, Storage exception
Protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
General: Password Protection, IP Address Filtering, Anonymous Access, Watermark
Standard: ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI
Interface
Communication Interface: 1 RJ45 10M/100M Ethernet port
On-board Storage: Built-in Micro SD/SDHC/SDXC slot
Reset: Yes
General
Working Temperature/Humidity: -22~140°F; Humidity 95% or less (non-condensing)
Power Supply: DC12V ± 10%, PoE (802.3af)
Power Consumption: Max. 5W
IR Range: Approx. 100ft
Weather Proof Ratings: IP66
Impact Protection: IK10
Dimensions: Φ 4.4" x 3.2"
Weight: 1.1lbs
Price will be lower
in next 2 weeks
in next 2 weeks
According to the data, price will be lower in next two weeks, so not waste your money and track better price!
