Description

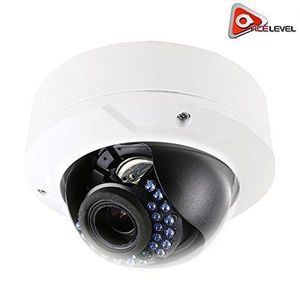

CMIP7243-SZ
Image Sensor: 1/3" Progressive Scan CMOS
Min. Illumination: 0.01Lux @ (F1.2, AGC ON), 0.014 Lux @ (F1.4, AGC ON), 0 Lux w/IR
Shutter Speed: 1/3 s to 1/10,000 s
Slow Shutter: Support
Lens: 2.8-12mm @ F1.4, Motorized lens
Lens Mount: Φ14
Day&Night: IR cut filter w/auto switch
Angle Adjustment: Pan: 0-355°, Tilt: 0-75°, Rotation: 0-355°
H.264 Type: Main Profile
Video Bit Rate: 32 Kbps~16 Mbps
Audio Compression: G.711/G.722.1/G.726/MP2L2
Audio Bit Rate: 64Kbps (G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-128Kbps(MP2L2)
Max. Resolution: 2688x1520
Frame Rate: 60Hz: 20fps (2688x1520), 30fps (1920x1080), 30fps(1280x720)
50Hz: 20fps (2688x1520), 25fps(1920x1080), 25fps(1280x720)
Image Setting: Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
BLC: Support, zone configurable
ROI Codec: Support
Network Storage: NAS (Support NFS,SMB/CIFS), ANR
Alarm Trigger: Motion detection, Tampering alarm, Network disconnect, IP address conflict, Storage exception
Protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
General: One-key reset, Flash-prevention, dual stream, heartbeat, mirror, password protection, privacy mask, watermark, IP address filtering, Anonymous access
Standard: ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI
Communication Interface: 1 RJ45 10M/100M Ethernet port
Reset: Yes
Working Temperature/Humidity: -22~140°F; Humidity 95% or less (non-condensing)
Power Supply: DC12V ± 10%, PoE (802.3af)
Power Consumption: Max. 5.5W (Max. 7.5 W w/IR cut filter on)
Impact Protection: IEC60068-275Eh, 20J; EN50102, up to IK10
Dimensions: Φ 5.5x3.9"
Weight: 2.20lbs
