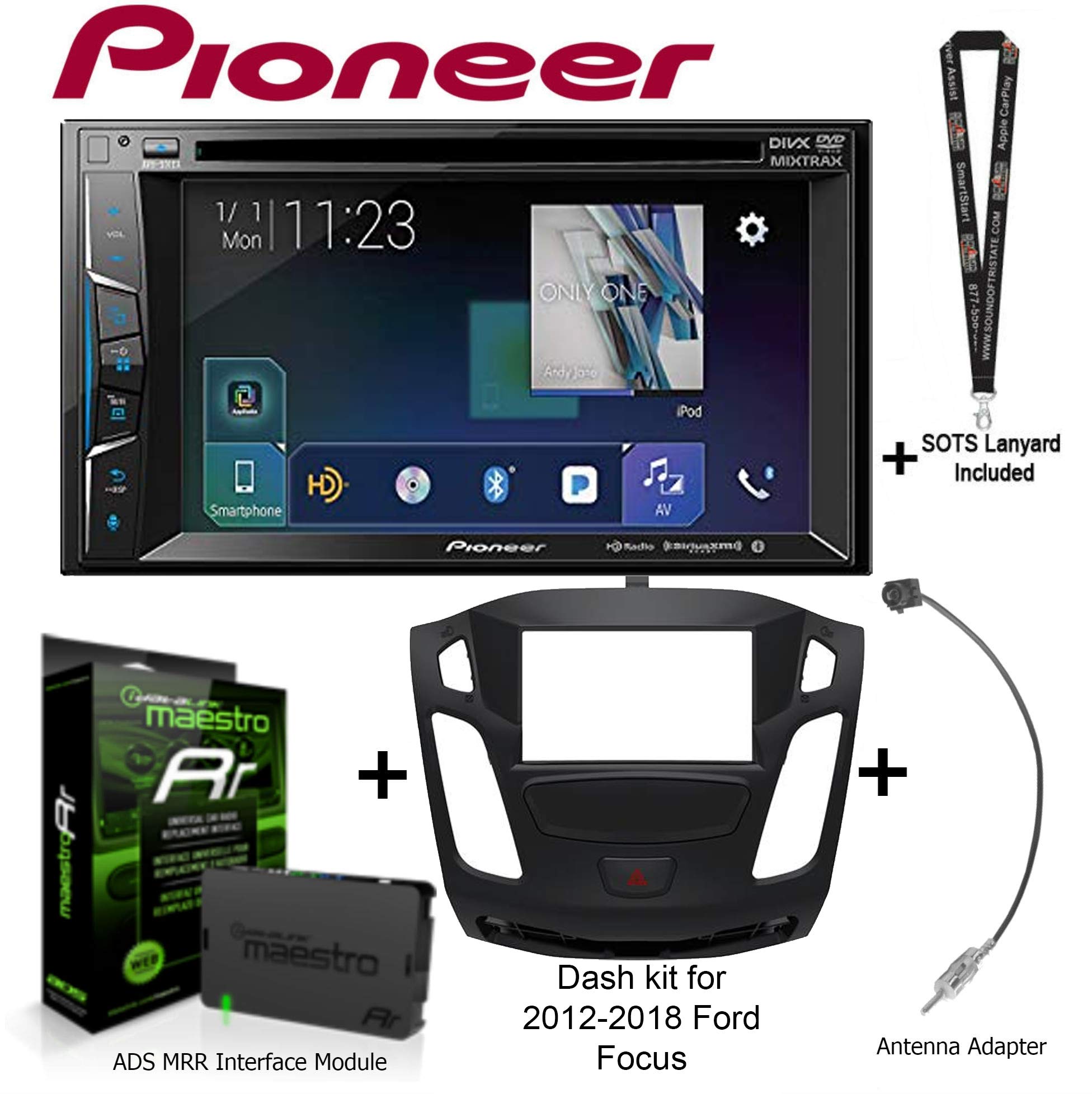

Sound of Tri-State Pioneer AVH501EX 6.2" DVD Receiver, iDatalink Maestro KIT-FOC1 Dash kit for 2012-2018 Ford Focus, ADS-MRR Interface Module and BAA22 Antenna Adapter and a SOTS Lanyard
Current Price
$499.99
Average
$499.99
Min Price
$499.99
Max Price
$499.99
Price dynamics
0%
Price will be lower
in next 2 weeks
in next 2 weeks
According to the data, price will be lower in next two weeks, so not waste your money and track better price!
Product review & video
Remove the center cap at the bottom of the factory dash bezel exposing the two (2) screws. Remove the two (2) T25 Torx screws. Starting at the bottom, pull the bezel forward. At the same time, use a panel removal tool to pry the bezel to release the clips. Disconnect the harness on the back of the bezel, then remove it. Remove the four (4) T25 Torx screws securing the screen frame, and the two T25 Torx screws securing the radio body. Remove the radio body from the dash, disconnecting the harnesses in the process. Remove the factory screen from the dash, disconnecting the harness in the process. Carefully remove the air vents from the factory radio bezel. Determine which lower dash bezel is needed for your installation, then secure it with the six (6) supplied phillips head screws. Attach the pocket of the FOC1 to the bezel using the four (4) provided Phillips screws. If the pocket
