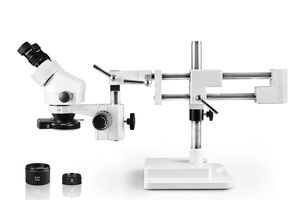

This Vision Scientific binocular zoom stereo microscope is ideal for laboratory and industrial applications. Using its high resolution, great depth, and a large field of view, it is the perfect instrument for viewing any three-dimensional specimen or large objects.

The solid cross block and brass inserts improve movement, while the friction collar secures the peg and allows the microscope to rotate around a vertical axis. Its rotating, swivelling, and tilting functionalities allow for it to cover wide, horizontal and vertical viewing areas; making it sure to meet your flexibility requirements.

Packed in a fitted Styrofoam box, and includes a dust cover and an instruction manual.

Specifications

• Head: Binocular, 45° inclined, rotates 360°
• Eyepiece: 10x WF / 20mm high eye point
• Zoom Range: 0.7x—4.5x, 1:6.4 zoom ratio
• Magnification Range: 7x—45x, 5x—90x with the 0.5x & 2x auxiliary Lens
• Working Distance: Up to 8” vertical; Up to 4” optical;  20” boom arm adjustable
• Focusing: Heavy duty rack and pinion focusing arm with tension adjustment
• Stand: Double arm ball-bearing boom stand
• Light Source: 144-LED four-zone ring light with intensity control

Packing List

• Binocular zoom stereo microscope head
• Pair of 10x WF eyepieces
• Double arm boom stand
• Focusing arm
• Pair of eye guards
• One dust cover
• User manual
• 0.5x and 2x auxiliary lens
• 144-LED four-zone ring light with intensity control
• Power adaptor
