Description
AC to DC switching enclosed power supply 24 Volts 31.3 Amps 751.2 Watts 24 Volts 31.3 Amps specifications output power (W): 751.2 size (L x W x H) inches: 11 x 5 x 2.5 ripple & noise (mV p-p): 120 load regulation: 0.5 percent line regulation: 0.2 percent efficiency: 89 percent agency approvals: UL/cul/CE/TUV/CB universal AC input/full range built-in active power factor correction (PFC) function, PF < 0.96 protections: short circuit, over voltage, over temperature, overload AC input active surge current limiting forced air cooling by built in DC ball bearing fan high power density(/inch³): 5.48 built in constant current limiting circuit with power good and fail signal output built in remote on-off control built in remote sense function 3 year warranty detailed specifications: primary output voltage (VDC): 24 output current (a): 31.3 maximum output power (W): 750 family: sp-750 input voltage (VAC): 90 to 264 input frequency: 47 to 63 maximum input current (a): 8.8 output connector Type: binding post number of outputs: 1 product Type: AC to DC power supply efficiency ( percent ): 89 minimum isolation voltage: 3000V operating temperature-min (CEL): -20 operating temperature-max (CEL): 60 Length (inch): 10.9 width (inch): 5 height (inch): 1.6 agency approvals: UL/cul/TUV/CE/CB color: silver Type: auto switching style: enclosed.

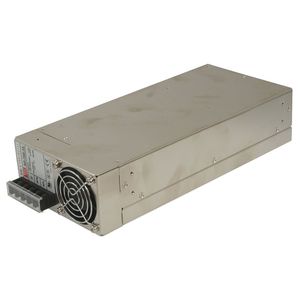

MEAN WELL SP-750-24 AC-DC Switching Enclosed Power Supply 24V 31.3A
Current Price
$246.41
Average
$204.91
Min Price
$146.64
Max Price
$298.32
Price dynamics
17%
Description
AC to DC switching enclosed power supply 24 Volts 31.3 Amps 751.2 Watts 24 Volts 31.3 Amps specifications output power (W): 751.2 size (L x W x H) inches: 11 x 5 x 2.5 ripple & noise (mV p-p): 120 load regulation: 0.5 percent line regulation: 0.2 percent efficiency: 89 percent agency approvals: UL/cul/CE/TUV/CB universal AC input/full range built-in active power factor correction (PFC) function, PF < 0.96 protections: short circuit, over voltage, over temperature, overload AC input active surge current limiting forced air cooling by built in DC ball bearing fan high power density(/inch³): 5.48 built in constant current limiting circuit with power good and fail signal output built in remote on-off control built in remote sense function 3 year warranty detailed specifications: primary output voltage (VDC): 24 output current (a): 31.3 maximum output power (W): 750 family: sp-750 input voltage (VAC): 90 to 264 input frequency: 47 to 63 maximum input current (a): 8.8 output connector Type: binding post number of outputs: 1 product Type: AC to DC power supply efficiency ( percent ): 89 minimum isolation voltage: 3000V operating temperature-min (CEL): -20 operating temperature-max (CEL): 60 Length (inch): 10.9 width (inch): 5 height (inch): 1.6 agency approvals: UL/cul/TUV/CE/CB color: silver Type: auto switching style: enclosed.
