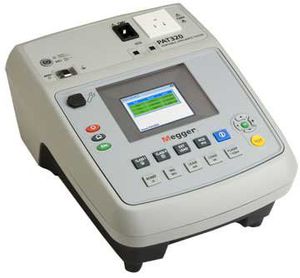

The Megger PAT320 portable benchtop appliance tester is a benchtop tester that evaluates the safety of electrical equipment. The unit can be set to perform automatically or manually, with user-selected pass/fail limits to speed up testing and simplify the results. The tester supports all regulatory test requirements, including Class 1 (grounded) and Class 2 (non-grounded) equipment, International Electrotechnical Commission (IEC) power cords, and extension leads. The tester performs a variety of common tests, including earth bond and continuity, insulation, touch current, differential leakage, substitute/alternative leakage, and functional load tests. It can also perform standard earth bond, insulation, and polarity tests on extension and IEC power leads. High- and low-current bond tests (25A, 10A, and 200mA) are selectable either by default or individually per test. A test lead null feature enables the use of extended test leads without affecting pass/fail limits or having to manually account for the additional resistance. The unit is safety rated to European Standard EN61010-1: 2001, CAT II, 300V. The PAT320 is commonly used by electricians and electrical contractors.

Specifications

H is height, the vertical distance from lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back.

Component testers evaluate the safety and performance of electri
