Description
The world's first bitcoin mining ASIC based on the 16nm process node
Bitmain's BM1387 chip is built using TSMC's 16nm FinFET technology and, delivering a record-breaking 0.098 J/GHs, is the world's most efficient bitcoin mining chip in the consumer market.

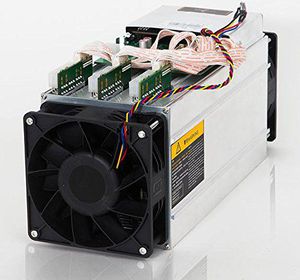

Each Antminer S9 employs 189 such chips to deliver more hashrate and efficiency than any bitcoin miner ever made.
Specification
Hash rate: 14TH/s (±5%)
Power consumption: 1372W
Power Efficiency: 0.098 J/GH (+10%)
Rated Voltage: 11.60~13.00V
Chip quantity per unit: 189x BM1387
Dimensions of the miner: 350x135x158 mm
Cooling: 6000rpm front fan, 4300rpm rear fan
Operating Temperature: 0°C to 40°C
Network Connection: Ethernet
Frequency: Automatically set
Notes
1. Power consumption figures will vary with your PSU's efficiency, the ambient operating temperature and the accuracy of the power meter.
2. Power supply unit is not included. You will need an ATX PSU. There are 3 PCI-e connectors for +12V DC input on each hashing board and all 3 need to be connected to the PSU for the hashboard to operate. Do not connect more than one PSU to the same hashing board!
Bitmain recommends the APW3-12-1600-B2 power supply for both the S9 and S7 miner. It cannot power more than one miner.
3. Separate power supply to control board: there is one additional 6pin PCI-e connector on the IO board which must be connected to the PSU to get power. Be sure to power on the miner after ALL the 10x PCIE connectors connected to power supply.
Bitmain's BM1387 chip is built using TSMC's 16nm FinFET technology and, delivering a record-breaking 0.098 J/GHs, is the world's most efficient bitcoin mining chip in the consumer market.
Each Antminer S9 employs 189 such chips to deliver more hashrate and efficiency than any bitcoin miner ever made.
Specification
Hash rate: 14TH/s (±5%)
Power consumption: 1372W
Power Efficiency: 0.098 J/GH (+10%)
Rated Voltage: 11.60~13.00V
Chip quantity per unit: 189x BM1387
Dimensions of the miner: 350x135x158 mm
Cooling: 6000rpm front fan, 4300rpm rear fan
Operating Temperature: 0°C to 40°C
Network Connection: Ethernet
Frequency: Automatically set
Notes
1. Power consumption figures will vary with your PSU's efficiency, the ambient operating temperature and the accuracy of the power meter.
2. Power supply unit is not included. You will need an ATX PSU. There are 3 PCI-e connectors for +12V DC input on each hashing board and all 3 need to be connected to the PSU for the hashboard to operate. Do not connect more than one PSU to the same hashing board!
Bitmain recommends the APW3-12-1600-B2 power supply for both the S9 and S7 miner. It cannot power more than one miner.
3. Separate power supply to control board: there is one additional 6pin PCI-e connector on the IO board which must be connected to the PSU to get power. Be sure to power on the miner after ALL the 10x PCIE connectors connected to power supply.
MerkAmerica Presents: Bitmain Antminer S9 14.0TH/s ASIC Bitcoin Miner IN STOCK
Price is below average
Current Price
$698.99
Average
$4 929.95
Min Price
$438.99
Max Price
$7 998
Price dynamics
86%
Description
The world's first bitcoin mining ASIC based on the 16nm process node
Bitmain's BM1387 chip is built using TSMC's 16nm FinFET technology and, delivering a record-breaking 0.098 J/GHs, is the world's most efficient bitcoin mining chip in the consumer market.
Each Antminer S9 employs 189 such chips to deliver more hashrate and efficiency than any bitcoin miner ever made.
Specification
Hash rate: 14TH/s (±5%)
Power consumption: 1372W
Power Efficiency: 0.098 J/GH (+10%)
Rated Voltage: 11.60~13.00V
Chip quantity per unit: 189x BM1387
Dimensions of the miner: 350x135x158 mm
Cooling: 6000rpm front fan, 4300rpm rear fan
Operating Temperature: 0°C to 40°C
Network Connection: Ethernet
Frequency: Automatically set
Notes
1. Power consumption figures will vary with your PSU's efficiency, the ambient operating temperature and the accuracy of the power meter.
2. Power supply unit is not included. You will need an ATX PSU. There are 3 PCI-e connectors for +12V DC input on each hashing board and all 3 need to be connected to the PSU for the hashboard to operate. Do not connect more than one PSU to the same hashing board!
Bitmain recommends the APW3-12-1600-B2 power supply for both the S9 and S7 miner. It cannot power more than one miner.
3. Separate power supply to control board: there is one additional 6pin PCI-e connector on the IO board which must be connected to the PSU to get power. Be sure to power on the miner after ALL the 10x PCIE connectors connected to power supply.
Bitmain's BM1387 chip is built using TSMC's 16nm FinFET technology and, delivering a record-breaking 0.098 J/GHs, is the world's most efficient bitcoin mining chip in the consumer market.
Each Antminer S9 employs 189 such chips to deliver more hashrate and efficiency than any bitcoin miner ever made.
Specification
Hash rate: 14TH/s (±5%)
Power consumption: 1372W
Power Efficiency: 0.098 J/GH (+10%)
Rated Voltage: 11.60~13.00V
Chip quantity per unit: 189x BM1387
Dimensions of the miner: 350x135x158 mm
Cooling: 6000rpm front fan, 4300rpm rear fan
Operating Temperature: 0°C to 40°C
Network Connection: Ethernet
Frequency: Automatically set
Notes
1. Power consumption figures will vary with your PSU's efficiency, the ambient operating temperature and the accuracy of the power meter.
2. Power supply unit is not included. You will need an ATX PSU. There are 3 PCI-e connectors for +12V DC input on each hashing board and all 3 need to be connected to the PSU for the hashboard to operate. Do not connect more than one PSU to the same hashing board!
Bitmain recommends the APW3-12-1600-B2 power supply for both the S9 and S7 miner. It cannot power more than one miner.
3. Separate power supply to control board: there is one additional 6pin PCI-e connector on the IO board which must be connected to the PSU to get power. Be sure to power on the miner after ALL the 10x PCIE connectors connected to power supply.
Price will be lower
in next 2 weeks
in next 2 weeks
According to the data, price will be lower in next two weeks, so not waste your money and track better price!
