Description
MeterTo
MeterTo mainly offers instruments and tools.
Please confirm the product is offered by our store MeterTo when purchasing,
otherwise we can't ensure the quality and after-sale service.
Specification

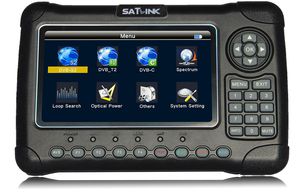

Model: WS-6980
Transmission standards: DVB-S2/S,DVBT/T2,DVB-C
Satellite Input/Demodulation
Connector Type: F Type
Input Frequency: 950 to 2150 MHz
Signal Input Level: -65 to -25 dBm
Band Switch Control: 22KHz
LNB Supply: 13V/18V, IMax 350mA
Demodulation Type: QPSK,8PSK,16APSK
Symbol Rate: 2 < Rs < 45Mband (SCPC/MCPC)
DVB-T/T2/C Input/ Demodulation
Connector Type: Female Type
Input Frequency: 48 to 862 MHz
Signal Input Level: - 79.5dBm (MAX)
ANT Supply: 5V/12V/24V, IMax 100mA
Demodulation Type: QPSK,16QAM,64QAM,256QAM
LCD Features
LCD Type: TFT TRANSMISSIVE
Number of Dots: 800x3(RGB)x480
Active Area (W x H): 154.08x85.92mm2
AV Output Interface
Connector Type: 3.5 mm jack
Video Output: CVBS
Audio Output: Stereo Audio L/R output
HDMI Output Connector
Format: HDMI 1.3a
AV Input Interface
Connector Type: 3.5 mm jack
Video Input: CVBS
Audio Input: Stereo Audio L/R input
Audio/Video Processing
Video Decompression: MPEG-2 MP@HL,MPEG-1,Decoding,MPEG-4 ASP@L5 HD,Resolution,H.264 MP&HP@L4,HW,JPEG decoding
Resolving Rate: PAL-25 frame@ 720*576, NTSC-30 frame@720*480
Signal Compatibility: Support coversion for different video formats
Video Format: 4:3, 16:9 by Pan & Scan and letter box conversion
Audio Decompression: MPEG-1 Layer I/II, MPEG-2 Layer I/II
Audio Output Mode: Stero, Mono, R/L
Data Protocol: USB2.0 interface
File Management System: NTFS, FAT32, FAT16
File format: wma,mp3,mp4,avi,jpg,jpeg,bmp,img
Li-Ion Battery: 7.4V/5000mAh
Size: 250x156X40(mm)
Weight: 1KG
