Description

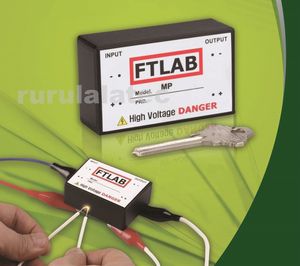

Miniature Proportional HV DC-DC Converter
Description
The MP series is a broad line of small, versatile, component level building blocks that provide up to 1, 3, 5, or 10 KVdc at up to 3 watts continuous output power in a PCB mount package. This series features low ripple, low noise, and various protection.
Physical Specifications
* Size : 40 x 64 x 22 mm(WxDxH)
* Package : Epoxy Encapsulated
* Case Material : Black Anodized Aluminum
Electrical Specifications
Model : MP-A2R5 / MP-A10 / MP-A30 / MP-A50 / MP-A100
* Input Voltage[Vdc] : 0~12 / 0~12 / 0~15 / 0~15 / 0~15
* Output Voltage[Vdc] : 0~250 / 0~1K / 0~3K / 0~5K / 0~10K
* Power : 3W
* Typical Turn-On Voltage : 0.7V
* Ripple : <5%
* Isolation : 3.5KV + Vout
* Efficiency : >60% Typical
* Operation Temp : -10°C~60°C
Applications
* Electro-Static Field Generation
* HV Op Amps
* Grid Bias
* Spectrometry
* Piezo Device
* Lamp Ignition
* Capacitor Charging
* Electro Phoresis
* Image Intensifiers
* Printers
Description
The MP series is a broad line of small, versatile, component level building blocks that provide up to 1, 3, 5, or 10 KVdc at up to 3 watts continuous output power in a PCB mount package. This series features low ripple, low noise, and various protection.
Physical Specifications
* Size : 40 x 64 x 22 mm(WxDxH)
* Package : Epoxy Encapsulated
* Case Material : Black Anodized Aluminum
Electrical Specifications
Model : MP-A2R5 / MP-A10 / MP-A30 / MP-A50 / MP-A100
* Input Voltage[Vdc] : 0~12 / 0~12 / 0~15 / 0~15 / 0~15
* Output Voltage[Vdc] : 0~250 / 0~1K / 0~3K / 0~5K / 0~10K
* Power : 3W
* Typical Turn-On Voltage : 0.7V
* Ripple : <5%
* Isolation : 3.5KV + Vout
* Efficiency : >60% Typical
* Operation Temp : -10°C~60°C
Applications
* Electro-Static Field Generation
* HV Op Amps
* Grid Bias
* Spectrometry
* Piezo Device
* Lamp Ignition
* Capacitor Charging
* Electro Phoresis
* Image Intensifiers
* Printers
Miniature Proportional HV DC-DC Converter Input 0~15V Output 0~5KV 3Watt (MP-A50)
Current Price
$218.9
Average
$218.9
Min Price
$218.9
Max Price
$218.9
Price dynamics
0%
