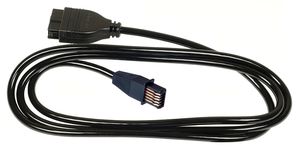

The Mitutoyo 905338 Digimatic SPC connecting cable outputs data from Digimatic gauges that have data output capability to a Digimatic mini-processor, display unit, multiplexer, or similar device. The cable is a straight type cable and is compatible with Digimatic instruments with an output feature, including all Digimatic calipers without an Absolute encoder, 570-2XX, 192-6XX, and 192-167X series height gauges; 547-21X, 547-25X, and 571-2XX series depth gauges; 572-XXX series scale units; and 575-XXX, 543-6XX, 543-2XX, and 543-4XX series indicators. The cable is 40" long.

Compatible Mitutoyo Devices

Calipers measure the distance between two opposing sides of an object. They make inside, outside, depth, or step measurements, according to their type. Calipers are commonly used in architecture, metalworking, mechanical engineering, and machining. The simplest calipers have two legs to mark the two points and require a ruler to take the measurement. More complex calipers use two sets of jaws instead of legs and have up to two graduated scales. Vernier, dial, and digital calipers give direct and accurate readings and are functionally identical, having a calibrated scale with a fixed jaw, and another jaw with a movable pointer that slides along the scale. The vernier caliper has a scale sliding parallel to the main scale for an additional, fractional reading to improve measurement precision. The dial caliper has a circular dial with a pointer on a toothed gear
