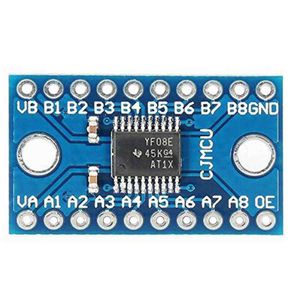

hello my name is lewis and i'm going to talk to you a bit about the txs0108e logic level shifter i'll show you what it is how you use it and then at the end i'll show you an example circuit and code for you to try yourself what does it look like this is what the txs010ae looks like the chip itself is the black package in the middle that is known as a fin shrink small outline package recognizable by the plastic casing and the gold wing leads on the side for connectivity what can it be used for the logic level converter allows us to interface electronics which use a different voltage level when representing high and low on a wire the chip acts as a kind of voltage translator between the two devices it works in both directions and is ideal for safely stepping down 5 volts to 3.3 volts or stepping up 3.3 volts to 5 volts how does it work well the board is divided into two major halves the a
