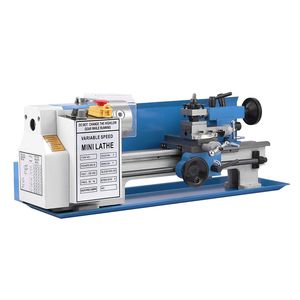

550W 7" X 14" Variable-speed Metal Lathe With Nylon Gears The 7 x 14 Inch Precision Mini Benchtop Lathe features a 3-jaw chuck, a MT3 spindle taper, a MT2 tailstock taper, a tool rest and a 3/4 HP motor, designed to perform various types of metal turning, simple to operate. Through high frequency quenching process and precision grinding of high-quality cast iron bed. 50-2500Rpm spindle speed sub-level of two tranches spindle gear change speed control, continuously adjustable. A movable lamp is free for you.
FEATURES
Heavy & Sturdy Machine
Features a 7 inch swing over bed, 13.78 inch distance between centers and 21mm spindle bore. Includes a thread range of 12-52 TPI, threading dial indicator and standard and metric handwheel graduations.
Infinitely Variable Speeds
Variable speed from 50-2500 Rpm. Forward and reverse in all speeds. Operate either manually or with the adjustable auto feed rate. The feed speed can be adjusted according to the requirements of different workpieces.
High Accuracy Chuck
3-jaw self-centering chuck has gone tested with accuracy and repeatability to set cylindrical materials steadily. Backsplash guard included. Spindle is supported by precision tapered roller bearings, spindle accuracy within 0.01mm.
Four-way Tool Post
T-slotted compound slide with four-way tool post, 4 blades avaliable at most, easy to change quickly. Bevel cutting can be made by adjusting the angle of the compound rest with the lever.
Specifications
Power of Motor: 550W DC Single Phase
Variable Speed: 50-2500Rpm
Swing Over Bed: 180mm(7.09")
Chuck Diameter: 100mm(3.94")
Centers Distance: 350mm(13.78")
Spindle Bore: 21mm(0.82")
Inch Thread: 12-52 T.P.I
Metric Thread: 0.5-2.5mm
Package Content
1 x Mini Metal Lathe
Some Related Accessories
1 x Manual
