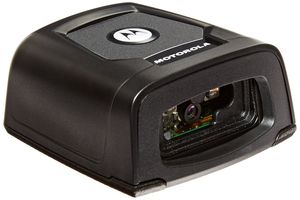

The Motorola DS457-SR20009 fixed-mount barcode reader can be used at a point of sale or a production line to scan and decode linear one-dimensional (1D), two-dimensional (2D), and Portable Document Format 417 (PDF417) barcodes. A laser produces lines of light in an omnidirectional pattern to scan barcodes on labels or cell phone screens at different angles. A trigger can be used to scan barcodes by hand instead of automatically. The barcode reader contains a 624 MHz processor to decode barcodes. A cable (sold separately) and on-board interfaces can be used to connect the barcode reader to a computer or host system. A mounting accessory can be used to mount the barcode reader to a counter or surface. The barcode reader's footprint makes it suitable for small spaces. The barcode reader weighs 3.9 oz. and measures 1.15 x 2.44 x 2.3 inches (H x W x D). (H is height, the vertical distance from the lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back.) It can withstand drops of up to 30" on a concrete floor. The barcode reader is suitable for use with Motorola 123Scan software (available separately for download).

Barcode scanners, also known as barcode readers, can be used to scan and decode barcodes and to transmit barcode data to a computer or another host system. Barcode readers with a single-line laser can be used to scan linear, one-dimensional (1D) barcodes. Some lasers can produce light in an omnidirectional pattern to allow scanning of barcodes from different angles. Other barcode readers contain CCD (charge-coupled device) light sensors instead of a laser for accuracy and wear resistance. Barcode scanners with raster scanning, area imaging, and other scanning technologies can allow scanning of two-dimensional (2D) or Portable Document Format 417 (PDF417) barcodes, among other types. Some barcode readers provide onboard flash memory to allow the storage o
