Description
Topping D70 Hifi Balanced DAC Stereo Audio Decoder Amplifier Features:
High Resolution Music:Support Native DSD512 PCM 32bit768kHz
Dual AK4497:We use two AK4497 chips working for each sound channel in D70.
AK4118 Receiver A44118 is the jitter lowest S/PDIF receiver at present,can receive optical,coaxial, AES signals up to 24bit/192kHz.
Various Input Ports AES, USB, Optical, coaxial which all support up to 24bit192K input. Both USB and IIS support 32bit768k & DSD512 input.
output port Balanced XLR and single ended RCA output.It can be set as XLR output only, RCA output only, or both XLR and RCA output .
D70 use 2 x ACCUSILICON femtosecond crystal to make the Jitter lower.
4 x 3300uF nichicon FW capacitance provide energy reserves for the AK4497, and 8 x nichicon Muse capacitance are coupling output signals of it.
The Ultra low-noise low- dropout linear regulators TPS7A4701 and TPS7A3301 provide power for D70, bringing you "a darker background".
The output circuit is built up with L ME49720 OP-AMP ,Vishay high precision resistor and WIMA capacitance.
DAC&Pre-amp D70 has an internal volume controlling function which can adjust the volume from -99dB to 0dB. You can connect D70 to amplifier, or power speaker.
Spec:
Power input:AC110V/AC220V 50Hz/60Hz
Signal input:USBICOAX/OPT/AES/IIS
Line Out output:XLR/RCA
Support:
USB IN: 44.1kHz- 768kHz/16Bit-32Bit. DSD64-DSD51(Native)、DSD64-DSD256 (DOP)
IIS IN: 44.1kHz- 768kHz/16Bit-32Bit、DSD64-DSD512
COAX/OPT/AES IN: 44. 1kHz-192kHz/16Bit-24Bit
D70 analog output parameters:
LINE OUT RCA
THD+N:<0.0004% @ 1kHz A-weighting
SNR:>118dB @A-weighting
Frequency Response:20Hz-20kHz(±0.9dB)
Output Voltage:2Vrms @ 0dBFS
*Warning: Please select to your local voltage.

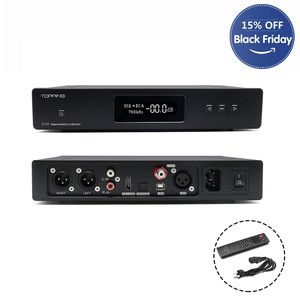

Topping D70 HiFi Balanced DAC XMOS XU208 AK4497 OPA1612 DSD512 32Bit/768KHz USB/Optical/Coaxial/AES/IIS Audio Decoder with Remote Control(Black)
Current Price
$499.99
Average
$488.88
Min Price
$399.99
Max Price
$499.99
Price dynamics
2%
Description
Topping D70 Hifi Balanced DAC Stereo Audio Decoder Amplifier Features:
High Resolution Music:Support Native DSD512 PCM 32bit768kHz
Dual AK4497:We use two AK4497 chips working for each sound channel in D70.
AK4118 Receiver A44118 is the jitter lowest S/PDIF receiver at present,can receive optical,coaxial, AES signals up to 24bit/192kHz.
Various Input Ports AES, USB, Optical, coaxial which all support up to 24bit192K input. Both USB and IIS support 32bit768k & DSD512 input.
output port Balanced XLR and single ended RCA output.It can be set as XLR output only, RCA output only, or both XLR and RCA output .
D70 use 2 x ACCUSILICON femtosecond crystal to make the Jitter lower.
4 x 3300uF nichicon FW capacitance provide energy reserves for the AK4497, and 8 x nichicon Muse capacitance are coupling output signals of it.
The Ultra low-noise low- dropout linear regulators TPS7A4701 and TPS7A3301 provide power for D70, bringing you "a darker background".
The output circuit is built up with L ME49720 OP-AMP ,Vishay high precision resistor and WIMA capacitance.
DAC&Pre-amp D70 has an internal volume controlling function which can adjust the volume from -99dB to 0dB. You can connect D70 to amplifier, or power speaker.
Spec:
Power input:AC110V/AC220V 50Hz/60Hz
Signal input:USBICOAX/OPT/AES/IIS
Line Out output:XLR/RCA
Support:
USB IN: 44.1kHz- 768kHz/16Bit-32Bit. DSD64-DSD51(Native)、DSD64-DSD256 (DOP)
IIS IN: 44.1kHz- 768kHz/16Bit-32Bit、DSD64-DSD512
COAX/OPT/AES IN: 44. 1kHz-192kHz/16Bit-24Bit
D70 analog output parameters:
LINE OUT RCA
THD+N:<0.0004% @ 1kHz A-weighting
SNR:>118dB @A-weighting
Frequency Response:20Hz-20kHz(±0.9dB)
Output Voltage:2Vrms @ 0dBFS
*Warning: Please select to your local voltage.
