Description

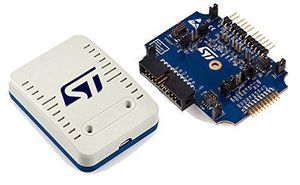

The STLINK-V3SET is a modular stand-alone debugging and programming probe for the STM8 and STM32 microcontrollers. It is composed of a main module and a complementary adapter board.

The SWIM and JTAG/SWD interfaces are used to communicate with any STM8 or STM32 microcontroller located on an application board.

The STLINK-V3SET also provides a Virtual COM port interface allowing the host PC to communicate with the target microcontroller through one UART, and bridge interfaces (SPI, I2C, CAN, GPIOs) allowing for instance the programming of the target through bootloader.

The modular architecture of STLINK-V3SET enables to extend its main features through additional modules such as the adapter board.

Key Features:
Stand-alone probe with modular extensions
Self-powered through a USB connector (Micro-B)
USB 2.0 high-speed compatible interface
Direct firmware update support (DFU)
JTAG / serial wire debugging (SWD) specific features: 3 V to 3.6 V application voltage support and 5 V tolerant inputs, Flat cables STDC14 to MIPI10 / STDC14 / MIPI20 (connectors with 1.27 mm pitch), JTAG communication support, SWD and serial wire viewer (SWV) communication support
SWIM specific features (only available with adapter board MB1440): 1.65 V to 5.5 V application voltage support, SWIM header (2.54 mm pitch), SWIM low-speed and high-speed modes support
Virtual COM port (VCP) specific features: 3 V to 3.6 V application voltage support on the UART interface and 5 V tolerant inputs, VCP frequency up to 15 MHz, Available on STDC14 debug connector (not available on MIPI10)
Multi-path bridge USB to SPI/UART/I2C/CAN/GPIOs specific features: 3 V to 3.6 V application voltage support and 5 V tolerant inputs, Signals available on adapter board only (MB1440)
Drag-and-drop Flash programming
Two color LEDs: communication, power

STLINK-V3 Modular in-Circuit debugger and Programmer for STM32/STM8

Price is below average

Get price

Current Price

$48.95

Average

$51.62

Min Price

$48.95

Max Price

$65

Price dynamics

Description

The STLINK-V3SET is a modular stand-alone debugging and programming probe for the STM8 and STM32 microcontrollers. It is composed of a main module and a complementary adapter board.

The SWIM and JTAG/SWD interfaces are used to communicate with any STM8 or STM32 microcontroller located on an application board.

The modular architecture of STLINK-V3SET enables to extend its main features through additional modules such as the adapter board.

According to the data, price will be lower in next two weeks, so not waste your money and track better price!

Product review & video

hello and welcome to this st-link v3 debugger and programmer video thanks to st-link v3 set you can seamlessly debug or program STM 8 and stm32 targets in various ways you just have to connect the st-link probe to a USB port of your computer and to your MCU target you can easily debug and program your target using IAR embedded workbench ide st-link v3 will be automatically recognized you should select it as a debugger if not already done you can easily debug and flash your target using armed qu'il MDK is very will be automatically recognized you should select it as a debugger if not already done you can simply connect to your target using stm32 cube programmer utility thanks to this software tool you can access information about your target read and write target memories modify options bits and flash your application the st-link v3 set is a modular tool you can connect add-on boards to
