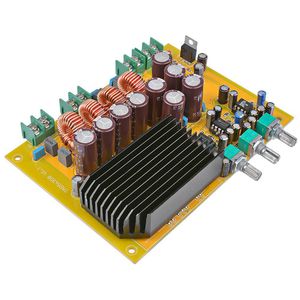

Description

The Noblik brand is only authorized to sell Noblik branded goods. Buying goods from Noblik gives you a great shopping experience. Maximum Power Per Channel: Above 200W
Model Number: TAS5630
Channels: 3 (2.1)
Package: Yes
Color: yellow
Material: metal + pc
Parametric indicator: (subwoofer channel)
DC=50V, R=4Ω, THD+N=10%, P=300W
DC=50V, R=6Ω, THD+N=10%, P=210W
DC=50V, R=8Ω, THD+N=10%, P=160W
DC=50V, R=4Ω, P=240W when THD+N=1%
DC=50V, R=6Ω, THD+N=1%, P=160W
DC=50V, R=8Ω, when THD+N=1%, P=125W
Total Harmonic Distortion (THD+N): less than 1%
Signal to Noise Ratio (SNR): Greater than 100dB
Input impedance: 20KΩ
Output offset voltage: less than 150mV
Voltage gain: adjustable
Conversion Rate (SR): 50V/us
Frequency Response Range: 20Hz--20kHz
PCB size: 140 * 102MM
Power supply range: DC20--50V (minimum 24V 8A and above)
Features:
The op amp is used as the left and right channel preamplifiers, with excellent dynamic and detail performance.
Note:
The board is a DC power supply. Do not input AC directly. Use an AC transformer, externally connect a rectifier bridge and filter capacitor. In addition, the DC power supply should not exceed 50V and it should not be lower than 20V. If it is less than 20V, it will not start. In addition, there is a relationship between the output power and the power of the power supply. The 50V power will be 4 times larger than the power at 20V.
Package included:
1 * audio high power digital amplifier board
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
