8 Kinds of Classic Display Modes:

• Mode 1: Columnar mode
• Mode 2: Columnar with peak holding mode
• Mode 3: Columnar with peak, peak upward moving out mode
• Mode 4: Mirror mode, from middle to both sides
• Mode 5: Single point mode
• Mode 6: Peak upward moving out mode
• Mode 7: Single peak mode
• Mode 8: Mute with all lights on mode(available for testing LED)

Product Size:

29 * 4 * 7.5cm

Instructions:

• Please insert the attached connector USB terminal to your computer USB interface, 3.5mm headphones by audio branch into the computer or other device's headphone output jack, the other end of the branch connects audio equipment;
• Gain description: 1-3 levels are gain attenuation, 4 level is 0 gain, 5-6 levels are gain amplification. Please adjust input volume and gain to make the display amplitude at an appropriate range (default value 3);
• If happened to full screen display, please reduce the gain or input volume; if the display still dances when no sound source input, please replace the power supply to test or use computer USB terminal as power supply;
• If the audio input terminal needs to be connected to amplifier output or speakers, please use capacitor and potentiometer to attenuate the signal, and please make sure that the audio signal input voltage should be within 5V, or the sound spectrum analyzer will be damaged.

Note:

Please do not use counterfeit phone chargers, unstable power supply or other power supplies which have large ripple, or it will cause background noise or damage to the audio analyzer.

Package Includes:

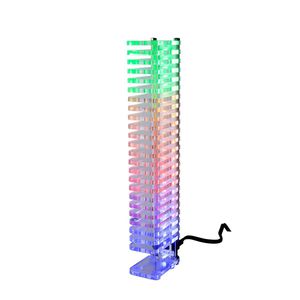

• 1× KS25 Music Spectrum VU Tower (Kit & Assembled)
• 1× USB Cable
• 1× 3.5mm Male to 2 * Female Plug
