FOR FULL SPECIFICATIONS AND DETAILS, PLEASE REVIEW THE PRODUCT PAGE AT NOOELEC.COM

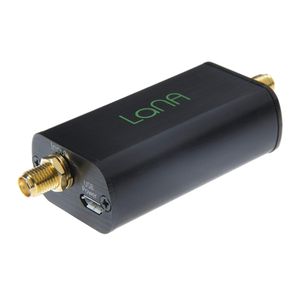

LaNA is a very high performance, wideband LNA module designed for general purpose SDR applications.
Each module allows for 3 different power options, but you should only power with one option at any given time! The recommended power input through the SMA output port (for bias-tee capable SDRs like the NESDR SMArTee XTR) is 3V-5V DC. Alternatively, if you don't have a bias-tee capable SDR, you can use the external power options--the microUSB port, or DC barrel connector via the included DC to microUSB adapter. The recommended external power input is 3.3V-5.5V DC.
Though there is protection circuitry on LaNA for overvoltage conditions--and voltages of up to 12V DC should still work and will not damage the device--it is not recommended for long-term usage. Kindly note that damage resulting from overvoltage conditions would not be covered under the standard 2 year warranty.
Each LaNA module has an internal EMI shield to protect the sensitive circuitry from external interference and is fully ESD-protected.
