Description

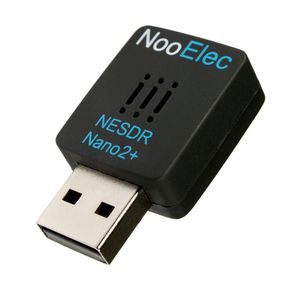

Brand new design! The NESDR Nano 2+ are custom-made by NooElec for SDR applications. The enclosure was also re-designed to assist in maintaining lower temperatures than the previous generation.

The tiny size and 24/7 capability makes the Nano 2+ perfect for embedded applications! How small? Just 24mm x 21mm x 8mm (15/16" x 13/16" x 5/16")!

The Nano 2+ contains a new custom TCXO fabricated exclusively for NooElec. Important TCXO specifications: Frequency stability: 0.5PPM (max) Phase noise @1kHz offset: -138dBc/Hz (or better) Phase noise @10kHz: -150dBc/Hz (or better) Phase noise @100kHz: -152dBc/Hz (or better) This is, by far, the highest performance TCXO available in any low-cost SDR.

As with other units in the NESDR Plus series, a full 2-year warranty is included at no extra charge. We guarantee antenna protection will be present so that your new investment will not be quickly destroyed by spurious ESD. And, as usual, we perform extensive QA.

The low-ESR NP0/C0G capacitors and high-Q inductors we use for production assist in lowering the noise floor, increase stability and improve longevity.

The NESDR Nano 2+ is based on the R820T2 tuner IC made by Rafael Micro, which means an approximate tuning range of 25MHz-1700MHz and improved selectivity and sensitivity in most frequency ranges versus R820T-based SDRs. There is also an RTL2832 (RTL2832U) IC on board of course, to provide basic demodulation and USB interface functionality

Full compatibility with a wide variety of popular SDR software packages, such as Matlab, HDSDR, SDR Touch, Planeplotter, SDR#--too many to list, really. We're talking Windows, Mac, Linux, Android, Raspberry Pi...you'd be hard pressed to find somewhere you can't use these!

The connector type on the antenna and USB board is MCX--male MCX on the antenna, female MCX on the SDR. There are plenty of adapter and adapter cables available in our store if you want to connect your favorite antenna!

NooElec NESDR Nano 2+ Tiny Black RTL-SDR USB Set (RTL2832U + R820T2) with Ultra-Low Phase Noise 0.5PPM TCXO, MCX Antenna & Remote Control; Software Defined Radio, DVB-T and ADS-B Compatible, ESD Safe

Price is below average

Get price

Current Price

$22.95

Average

$25.73

Min Price

$22.95

Max Price

$29.95

Price dynamics

11%

Description

Brand new design! The NESDR Nano 2+ are custom-made by NooElec for SDR applications. The enclosure was also re-designed to assist in maintaining lower temperatures than the previous generation.

The tiny size and 24/7 capability makes the Nano 2+ perfect for embedded applications! How small? Just 24mm x 21mm x 8mm (15/16" x 13/16" x 5/16")!

The low-ESR NP0/C0G capacitors and high-Q inductors we use for production assist in lowering the noise floor, increase stability and improve longevity.

According to the data, price will be lower in next two weeks, so not waste your money and track better price!

Product review & video

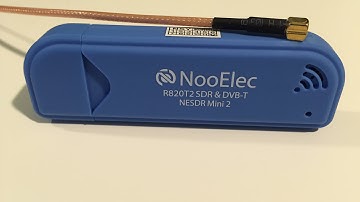

hello today I'm pretty excited to share with you trip down a new road with some software-defined radio I ordered from Amazon a package I received with an SPR small SDR dongle in it and let's open it up and see what's inside so if we open up this envelope we got a couple a couple things inside here we've got SDR dongle which is an interesting packaging it's just enough in a little baggie and I ordered a piece of coax coax converter with a what is it a C it's a we send them your you a check in the UHF connector our adult it's all cut off RG 316 it's got the little mini connector on the one end plugging the dongle a nestled 239 on the other end so we're going to attach them to an actual antenna so nothing exciting there let's open up the dongle itself and see what's inside the package this is it the top bag see there's the dongle see if you can read it it is a new luck are a 2-0 T 2 STR an
