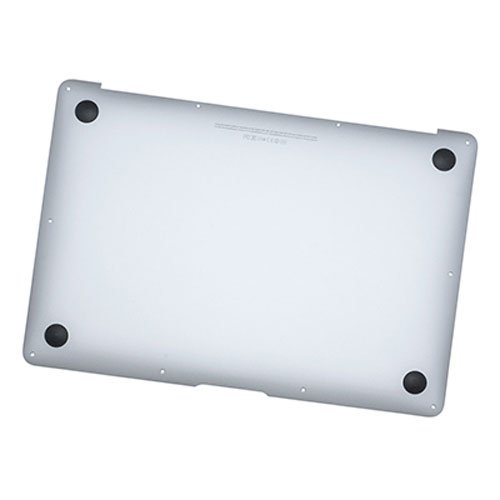

Odyson - Aluminum Bottom Case Replacement for MacBook Air 13" A1369 (2010, 2011), A1466 (2012, 2013, 2014, 2015)

[Music] [Music] 13-inch MacBook Air model 813 69 logic board replacement this applies to year 2010 and 2011 make sure that the Mac is completely shut down closed the lid flip it over we'll be removing the 10 screws that are securing the back panel to the unit we're going to need a proprietary apple's star shape pentalobe screwdriver bit starting in the top left corner removed the small screw first now the next 2 screws in the center up top are slightly longer than the rest of the screws just keep an eye on them once you remove them set them aside and remove the remaining eight screws with the screws out of the way go ahead and gently lift up on the back panel and move it out of the way locate the battery connection lifted by its tab and wiggle it left to right as you pull on it let's disconnect the input and output board data cable it's connected on the right and the left you can discon
