Description
Specifications
[Model] NF32-SV 3P 30A
[Frame (A)] 30
[Rated current In(A) Rated ambient temperature 40 deg. CEL(45 deg. CEL for marine use)] 30A
[Number of poles] 3
[Rated insulation voltage Ui (V)] 600
[Rated short-circuit breaking capacities (kA)]
JIS C 8201-2-1 Ann.1
JIS C 8201-2-1 Ann.2
IEC 60947-2
EN 60947-2(Icu/Ics)
500VAC:2.5/2.5
440VAC:2.5/2.5
415VAC:2.5/2.5
400VAC:5/5
380VAC:5/5
230VAC:7.5/7.5
200VAC:7.5/7.5
250VDC:2.5/2.5(*1)
[Rated impulse withstand voltage Uimp(kV)] 8
[Current] AC/DC compatible
[Suitabillity for isolation] Compatible
[Reverse connection] Possible
[Number of operating cycles]
Without current:10,000
With current(440VAC):6,000
[Utilization category] A
[Pollution category] 3
[EMC environment condition (environmet A or B)] N/A
[Mass of front-face type(kg)] 0.65
[CE marking] Self-declaration
[CCC recognition] Recognition in process
[Marine use approval (NK, LR, ABS, GL)] NK,LR,ABS,GL
[Automatic tripping device] Thermal-magnetic
[Trip button] Equipped
*1. Use two poles for three- and four-pole products.
In this case, do not use the neutral pole of the four-pole products.
1
[Model] NF32-SV 3P 30A
[Frame (A)] 30
[Rated current In(A) Rated ambient temperature 40 deg. CEL(45 deg. CEL for marine use)] 30A
[Number of poles] 3
[Rated insulation voltage Ui (V)] 600
[Rated short-circuit breaking capacities (kA)]
JIS C 8201-2-1 Ann.1
JIS C 8201-2-1 Ann.2
IEC 60947-2
EN 60947-2(Icu/Ics)
500VAC:2.5/2.5
440VAC:2.5/2.5
415VAC:2.5/2.5
400VAC:5/5
380VAC:5/5
230VAC:7.5/7.5
200VAC:7.5/7.5
250VDC:2.5/2.5(*1)
[Rated impulse withstand voltage Uimp(kV)] 8
[Current] AC/DC compatible
[Suitabillity for isolation] Compatible
[Reverse connection] Possible
[Number of operating cycles]
Without current:10,000
With current(440VAC):6,000
[Utilization category] A
[Pollution category] 3
[EMC environment condition (environmet A or B)] N/A
[Mass of front-face type(kg)] 0.65
[CE marking] Self-declaration
[CCC recognition] Recognition in process
[Marine use approval (NK, LR, ABS, GL)] NK,LR,ABS,GL
[Automatic tripping device] Thermal-magnetic
[Trip button] Equipped
*1. Use two poles for three- and four-pole products.
In this case, do not use the neutral pole of the four-pole products.
1

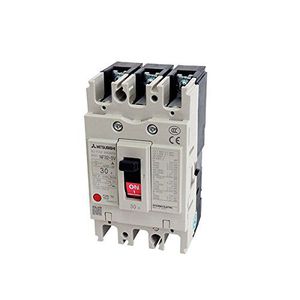

MITSUBISHI ELECTRIC NF32-SV 3P 30A Circuit Breakers(3 pole)(Rated current 30A) NN
Current Price
$40.57
Average
$40.3
Min Price
$38.27
Max Price
$41.75
Price dynamics
1%
Description
Specifications
[Model] NF32-SV 3P 30A
[Frame (A)] 30
[Rated current In(A) Rated ambient temperature 40 deg. CEL(45 deg. CEL for marine use)] 30A
[Number of poles] 3
[Rated insulation voltage Ui (V)] 600
[Rated short-circuit breaking capacities (kA)]
JIS C 8201-2-1 Ann.1
JIS C 8201-2-1 Ann.2
IEC 60947-2
EN 60947-2(Icu/Ics)
500VAC:2.5/2.5
440VAC:2.5/2.5
415VAC:2.5/2.5
400VAC:5/5
380VAC:5/5
230VAC:7.5/7.5
200VAC:7.5/7.5
250VDC:2.5/2.5(*1)
[Rated impulse withstand voltage Uimp(kV)] 8
[Current] AC/DC compatible
[Suitabillity for isolation] Compatible
[Reverse connection] Possible
[Number of operating cycles]
Without current:10,000
With current(440VAC):6,000
[Utilization category] A
[Pollution category] 3
[EMC environment condition (environmet A or B)] N/A
[Mass of front-face type(kg)] 0.65
[CE marking] Self-declaration
[CCC recognition] Recognition in process
[Marine use approval (NK, LR, ABS, GL)] NK,LR,ABS,GL
[Automatic tripping device] Thermal-magnetic
[Trip button] Equipped
*1. Use two poles for three- and four-pole products.
In this case, do not use the neutral pole of the four-pole products.
1
[Model] NF32-SV 3P 30A
[Frame (A)] 30
[Rated current In(A) Rated ambient temperature 40 deg. CEL(45 deg. CEL for marine use)] 30A
[Number of poles] 3
[Rated insulation voltage Ui (V)] 600
[Rated short-circuit breaking capacities (kA)]
JIS C 8201-2-1 Ann.1
JIS C 8201-2-1 Ann.2
IEC 60947-2
EN 60947-2(Icu/Ics)
500VAC:2.5/2.5
440VAC:2.5/2.5
415VAC:2.5/2.5
400VAC:5/5
380VAC:5/5
230VAC:7.5/7.5
200VAC:7.5/7.5
250VDC:2.5/2.5(*1)
[Rated impulse withstand voltage Uimp(kV)] 8
[Current] AC/DC compatible
[Suitabillity for isolation] Compatible
[Reverse connection] Possible
[Number of operating cycles]
Without current:10,000
With current(440VAC):6,000
[Utilization category] A
[Pollution category] 3
[EMC environment condition (environmet A or B)] N/A
[Mass of front-face type(kg)] 0.65
[CE marking] Self-declaration
[CCC recognition] Recognition in process
[Marine use approval (NK, LR, ABS, GL)] NK,LR,ABS,GL
[Automatic tripping device] Thermal-magnetic
[Trip button] Equipped
*1. Use two poles for three- and four-pole products.
In this case, do not use the neutral pole of the four-pole products.
1
Price will be lower
in next 2 weeks
in next 2 weeks
According to the data, price will be lower in next two weeks, so not waste your money and track better price!
