Description
[Product classification]Solid State Relay for heater control
[Operating Rated Voltage]12 to 24 VDC
[Operating Voltage Range]9.6 to 30 VDC
[Input Impedance]7 mA Max.(at 25 CEL)
[Must Operate Voltage]9.6 VDC Max.
[Must Release Voltage]1 VDC Min.
[Isolation]Phototriac
[Output Form]SPST-NO
[Rated load voltage]100 to 240 VAC(50/60Hz)
[Load Voltage Range]75 to 264 VAC(50/60Hz)
[Load Current]AC: 0.1 A to 15 A(at 40 CEL)
[Inrush Current Resistivity]AC: 150 A(60Hz 1 cycle)
[Output ON voltage drop]1.6V(RMS)Max.
[Leakage current]10mA Max.(at 200VAC)
[Ambient temperature]
Operating: -30 to 80 CEL
Storage: -30 to 100 CEL
(with no icing or condensation)
[Ambient humidity]Operating: 45 to 85% RH(with no icing or condensation)
[Applicable standard(UL)]Standard No.: UL508
[Applicable standard(CSA)]Standard No.: C22.2 NO.14
[Applicable standard(TUV)]Standard No.: EN60947-4-3
[Terminal structure]screw
[Mounting]panel(DIN track)
[Weight]Approx. 240 g
(1)
[Operating Rated Voltage]12 to 24 VDC
[Operating Voltage Range]9.6 to 30 VDC
[Input Impedance]7 mA Max.(at 25 CEL)
[Must Operate Voltage]9.6 VDC Max.
[Must Release Voltage]1 VDC Min.
[Isolation]Phototriac
[Output Form]SPST-NO
[Rated load voltage]100 to 240 VAC(50/60Hz)
[Load Voltage Range]75 to 264 VAC(50/60Hz)
[Load Current]AC: 0.1 A to 15 A(at 40 CEL)
[Inrush Current Resistivity]AC: 150 A(60Hz 1 cycle)
[Output ON voltage drop]1.6V(RMS)Max.
[Leakage current]10mA Max.(at 200VAC)
[Ambient temperature]
Operating: -30 to 80 CEL
Storage: -30 to 100 CEL
(with no icing or condensation)
[Ambient humidity]Operating: 45 to 85% RH(with no icing or condensation)
[Applicable standard(UL)]Standard No.: UL508
[Applicable standard(CSA)]Standard No.: C22.2 NO.14
[Applicable standard(TUV)]Standard No.: EN60947-4-3
[Terminal structure]screw
[Mounting]panel(DIN track)
[Weight]Approx. 240 g
(1)

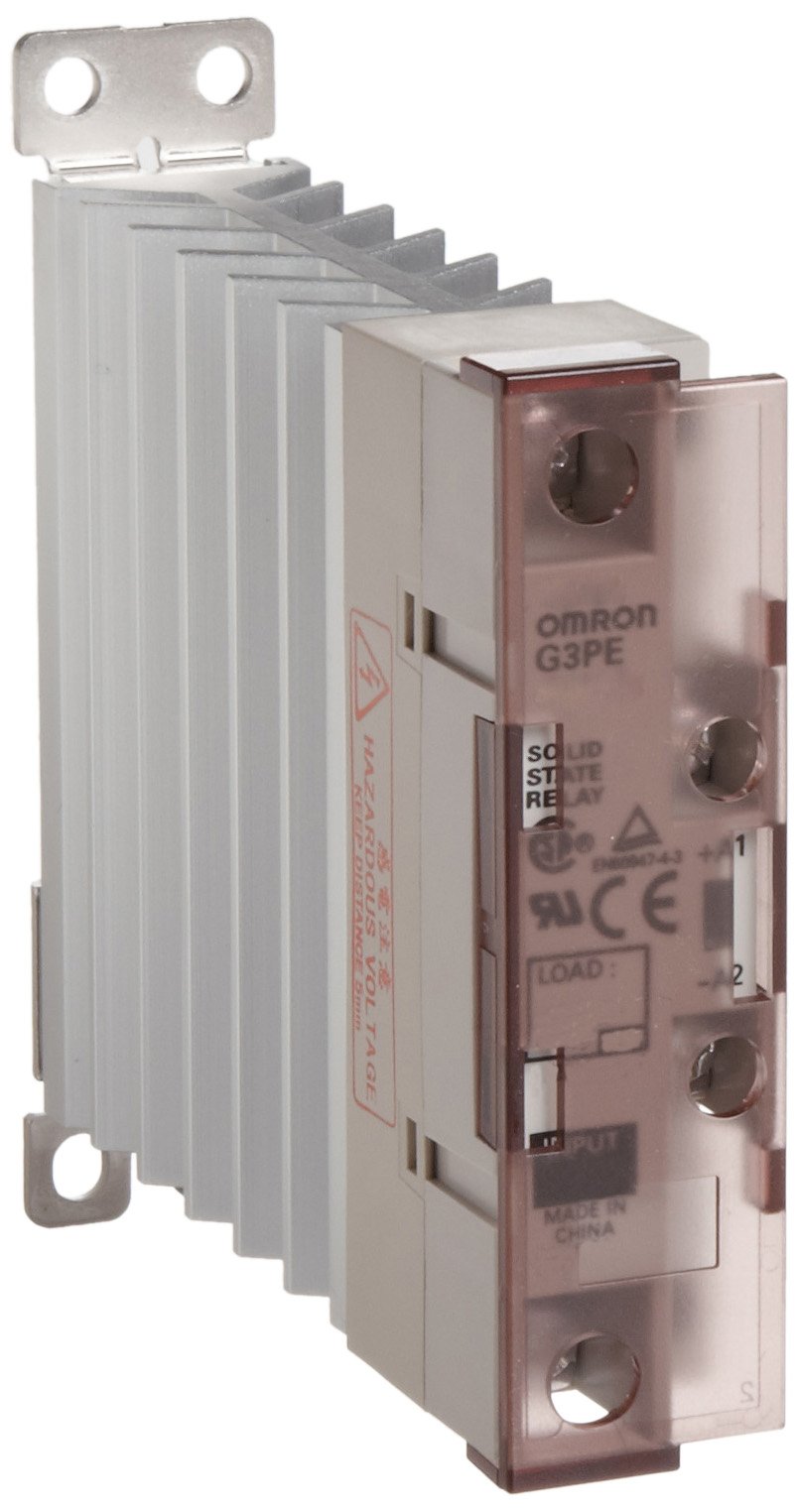

Omron G3PE-215B DC12-24 Solid State Relay for Heaters, Zero Cross Function, Yellow Indicator, Phototriac Coupler Isolation, Single-Phase, 15 A Rated Load Current, 100 to 240 VAC Rated Load Voltage, 12 to 24 VDC Input Voltage
Price is below average
Current Price
$42.9
Average
$43.45
Min Price
$29.71
Max Price
$60.99
Price dynamics
1%
Description
[Product classification]Solid State Relay for heater control
[Operating Rated Voltage]12 to 24 VDC
[Operating Voltage Range]9.6 to 30 VDC
[Input Impedance]7 mA Max.(at 25 CEL)
[Must Operate Voltage]9.6 VDC Max.
[Must Release Voltage]1 VDC Min.
[Isolation]Phototriac
[Output Form]SPST-NO
[Rated load voltage]100 to 240 VAC(50/60Hz)
[Load Voltage Range]75 to 264 VAC(50/60Hz)
[Load Current]AC: 0.1 A to 15 A(at 40 CEL)
[Inrush Current Resistivity]AC: 150 A(60Hz 1 cycle)
[Output ON voltage drop]1.6V(RMS)Max.
[Leakage current]10mA Max.(at 200VAC)
[Ambient temperature]
Operating: -30 to 80 CEL
Storage: -30 to 100 CEL
(with no icing or condensation)
[Ambient humidity]Operating: 45 to 85% RH(with no icing or condensation)
[Applicable standard(UL)]Standard No.: UL508
[Applicable standard(CSA)]Standard No.: C22.2 NO.14
[Applicable standard(TUV)]Standard No.: EN60947-4-3
[Terminal structure]screw
[Mounting]panel(DIN track)
[Weight]Approx. 240 g
(1)
[Operating Rated Voltage]12 to 24 VDC
[Operating Voltage Range]9.6 to 30 VDC
[Input Impedance]7 mA Max.(at 25 CEL)
[Must Operate Voltage]9.6 VDC Max.
[Must Release Voltage]1 VDC Min.
[Isolation]Phototriac
[Output Form]SPST-NO
[Rated load voltage]100 to 240 VAC(50/60Hz)
[Load Voltage Range]75 to 264 VAC(50/60Hz)
[Load Current]AC: 0.1 A to 15 A(at 40 CEL)
[Inrush Current Resistivity]AC: 150 A(60Hz 1 cycle)
[Output ON voltage drop]1.6V(RMS)Max.
[Leakage current]10mA Max.(at 200VAC)
[Ambient temperature]
Operating: -30 to 80 CEL
Storage: -30 to 100 CEL
(with no icing or condensation)
[Ambient humidity]Operating: 45 to 85% RH(with no icing or condensation)
[Applicable standard(UL)]Standard No.: UL508
[Applicable standard(CSA)]Standard No.: C22.2 NO.14
[Applicable standard(TUV)]Standard No.: EN60947-4-3
[Terminal structure]screw
[Mounting]panel(DIN track)
[Weight]Approx. 240 g
(1)
Price will be lower
in next 2 weeks
in next 2 weeks
According to the data, price will be lower in next two weeks, so not waste your money and track better price!
