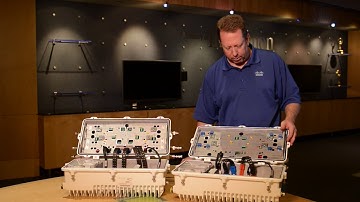

hi I'm Mike Whitley senior manager system engineering for cable access here at Cisco I'm here today to talk about how to change the split frequencies of our GS 7000 optical nodes I've got two different nodes here with me today the new 1.2 gigahertz 4x4 sigma Nobles GS 7000 and the new 1.2 gigahertz fiber deep version of GS 7000 but spend most of my time on the fiber deep version but knowing that the change of the diplexer split frequencies is virtually identical between the two different versions I'll walk through the various steps of how to change the dikes filters the low pass and high pass filter and show you how to reassemble what you'll need for this is pretty simple you'll need a small kit of parts that comes with a split kit upgrade and you'll need a couple of basic tools a Philips head screwdriver a flathead screwdriver a half inch nut driver and a pair of needle nose pliers the
