Description
The IAC24 input module is used to sense ON/OFF AC voltage levels at 90-140 VAC. All AC input modules are designed with filtering on the input and a hysteresis amplifier for high noise rejection and transient-free clean switching. Each module provides up to 4000 volts (transient) of optical isolation between the field inputs and the logic output of the circuit. Typical uses and applications include sensing the presence or absence of voltage or sensing contact closures from sources such as: proximity switches, limit switches, float switches, selector switches, push buttons, toggle switches, thermostats. Isolation, input-to-output (transient): 4000 V. Output voltage drop: logic side: 0.4 volts at 50 mA. Output current: 50 mA. Output leakage with no input IDC5D only: 0.1 mA at 30 VDC/0.01 mA at 30 VDC.
Underwriters Laboratory, Canadian Standards Association, IEC 950: 1991-09, 89/336/EEC, 2002/95/EC

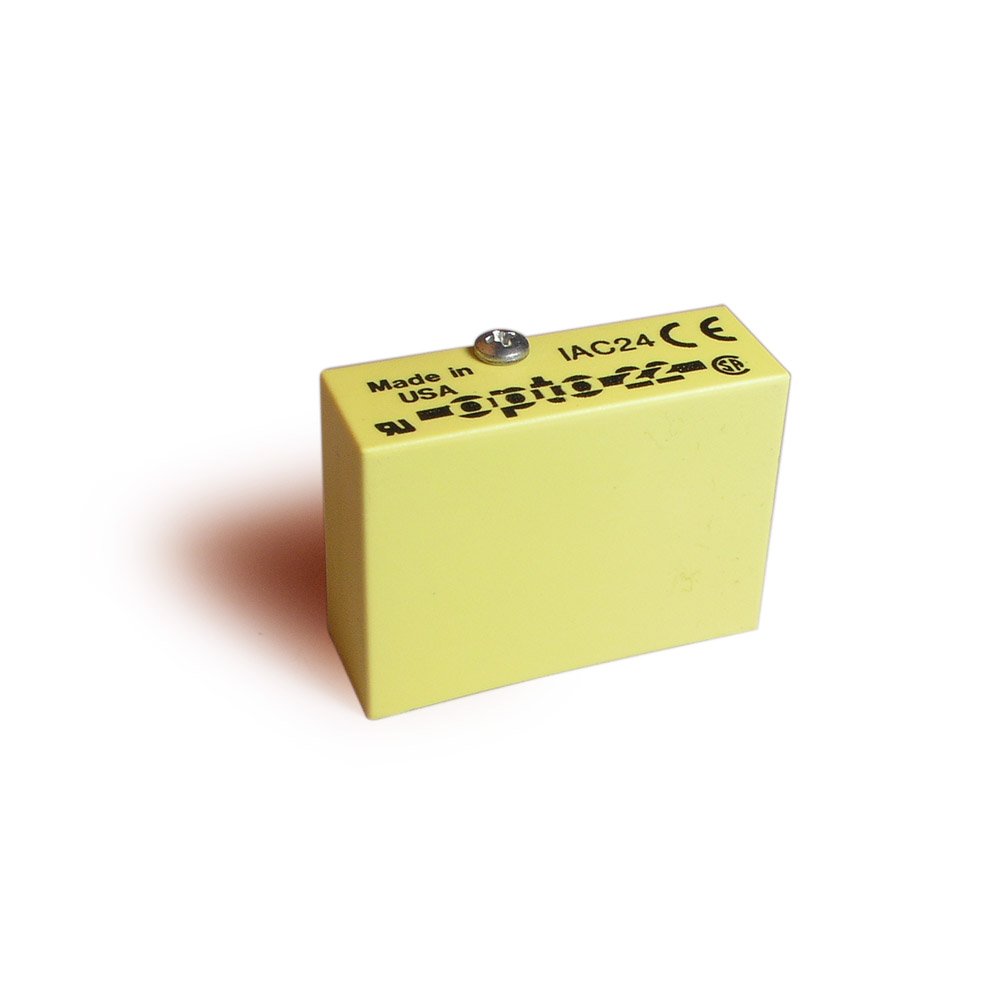

Opto 22 IAC24 AC Input, 90-140 VAC, 24 VDC Logic, 4000 Volt I/O Isolation, 5 mA Input Current
Current Price
$21.71
Average
$9.31
Min Price
$2.83
Max Price
$22.36
Price dynamics
57%
Description
The IAC24 input module is used to sense ON/OFF AC voltage levels at 90-140 VAC. All AC input modules are designed with filtering on the input and a hysteresis amplifier for high noise rejection and transient-free clean switching. Each module provides up to 4000 volts (transient) of optical isolation between the field inputs and the logic output of the circuit. Typical uses and applications include sensing the presence or absence of voltage or sensing contact closures from sources such as: proximity switches, limit switches, float switches, selector switches, push buttons, toggle switches, thermostats. Isolation, input-to-output (transient): 4000 V. Output voltage drop: logic side: 0.4 volts at 50 mA. Output current: 50 mA. Output leakage with no input IDC5D only: 0.1 mA at 30 VDC/0.01 mA at 30 VDC.
Underwriters Laboratory, Canadian Standards Association, IEC 950: 1991-09, 89/336/EEC, 2002/95/EC
Price will be lower
in next 2 weeks
in next 2 weeks
According to the data, price will be lower in next two weeks, so not waste your money and track better price!
