Description

on-line instructions: http://osoyoo.com/2018/06/25/osoyoo-pro-micro-board
Note:When you open the Arduino IDE software, pls go to the Tool and choose the board "Arduino Leonardo"

We have tech support for after-sale. If it can't be recognized by your computer when you use it, please change another USB cable or computers to test, if still no any update, may you need to install a driver , we made a detail tutorial, you can visit: https://youtu.be/9k5mk-FHF24 if still not solved it, please tell us.We can definitely help you to fix the problem .

1. The Pro Micro is similar to the Pro mini except with a ATmega32U4 on board. The USB transceiver inside the 32U4 allows us to add USB connectivity on board and do away with bulky external USB interface
2. This tiny little board does all of the neat-o Arduino tricks that you're familiar with: 4 channels of 10-bit ADC, 5 PWM pins, 12 DIOs as well as hardware serial connections Rx and Tx. Running at 16MHz and 5V, this board will remind you a lot of your other favorite Arduino-compatible boards but this little guy can go just about anywhere. If you're supplying unregulated power to the board, be sure to connect to the "RAW" pin on not VCC.
3. This latest revision corrects the silk error from the last version of the board so that pin 14 is correctly labeled. We've also added a PTC fuse and diode protection to the power circuit and corrected the RX and TX LED circuit.

Feature:
ATmega32U4 running at 5V/16MHz
Supported under Arduino IDE v1.0.1
Recommand power supply for board: 6-7V, less than 9V
On-Board micro-USB connector for programming
4 x 10-bit ADC pins
12 x Digital I/Os (5 are PWM capable)
Rx and Tx Hardware Serial Connections
Our Smallest Arduino-Compatible Board Yet

Package includes:
1 x OSOYOO Pro Micro ATmega32U4 Module for Arduino

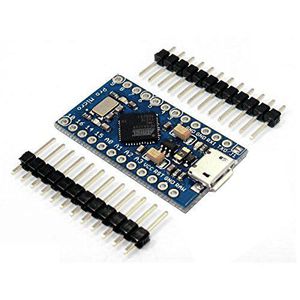

OSOYOO Pro Micro ATmega32U4 5V/16MHz Module Board with 2 Row pin Header for arduino Leonardo Replace ATmega328 Pro Mini

Get price

Current Price

$8.76

Average

$8.19

Min Price

Max Price

$12

Price dynamics

Description

According to the data, price will be lower in next two weeks, so not waste your money and track better price!

Product review & video

Hi, welcome to an Arduino tutorial for Robojax. in this video I'm going to introduce this Arduino Pro micro with a chip 80Mega32U4 with 32 kilobyte of flash and with tons of pins that can be used with the compact size. let's get started with this My name is Ahmad Shamshiri and I am presenting this tutorial from Canada. and this tutorial I'm going to introduce this through micro based on this ATMEL chip 80 mega 32U4 Arduino board this is amazing in terms of capability and size. as you can see the size it's very tiny but it has all or at least majority of capability of Arduino Uno that you might have used. with the exception of this ICSP connector and the pin 13 that is everything is even better than Arduino Uno. it has built-in USB that you can connect it directly without extra chip so that USB F on this chip and majority of operating system well recognizes automatically we get 16 digita
