Description
❤Specification:
Voltage:
Measuring range:80~260V
Resolution: 0.1V
Measurement accuracy: 0.5%
Current
Measuring range: 0~100A
Starting measure current: 0.02A
Resolution: 0.001A
Measurement accuracy: 0.5%
Active power
Measuring range: 0~23kW
Starting measure power: 0.4W
Resolution: 0.1W
Display format:
When the data is <1000W, it display one decimal, such as: 999.9W
When the data is ≥1000W, it display only integer, such as: 1000W
Measurement accuracy: 0.5%
Power factor
Measuring range: 0.00~1.00
Resolution: 0.01
Measurement accuracy: 1%
Frequency
Measuring range: 45Hz~65Hz
Resolution: 0.1Hz
Measurement accuracy: 0.5%
Active energy
Measuring range: 0~9999.99kWh
Resolution: 1Wh
Measurement accuracy: 0.5%
Display format:
When the data is <10kWh, the display unit is Wh(1kWh=1000Wh), such as: 9999Wh
When the data is ≥10kWh, the display unit is kWh, such as: 9999.99kWh
Reset energy: use software to reset.
Over power alarm: Active power threshold can be set, when the measured active power exceeds the threshold, it can alarm
Communication interface: RS485 interface

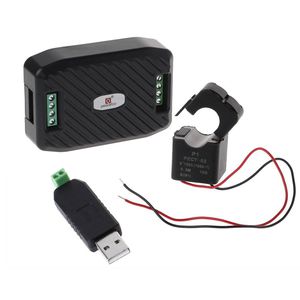

❤Package includes(without retail package):
1 x PZEM-016 AC Communication Module;
1 x Split CT;
1 x USB to 485 module
❤Note:
1.Transition: 1cm=10mm=0.39inch
2.Please allow 1-3mm error due to manual measurement. pls make sure you do not mind before you bid.
❤Warm tips:
1.We suggest our customers buying it very soon of your planned use.
2.Any problem of this product once reaches you,please contact us asap,we will solve it for you.
