Description:

- 5W+5W Class D Digital Amplifier

- Supply voltage: DC 5V (Do not overpressure, overpressure will burn IC)

- Input method: single-ended

- Output power: 5W 2Ω 5V \ 3W 4Ω 5V \ 1.8W 8Ω 5V

- High-grade pure black gold circuit board, imported audio capacitors, large-capacity filter capacitors per channel.

- Total harmonic distortion plus noise:<10%

- Low quiescent current

- Noise suppression

- Protection: power input reverse protection, short circuit, over temperature, over EMI

- External power amplifier type selection function (MODE: high level D, low level AB)

- External shutdown (SD: chip off when low)

- Can be externally muted (MUTE: low level mute)

Package Includes:

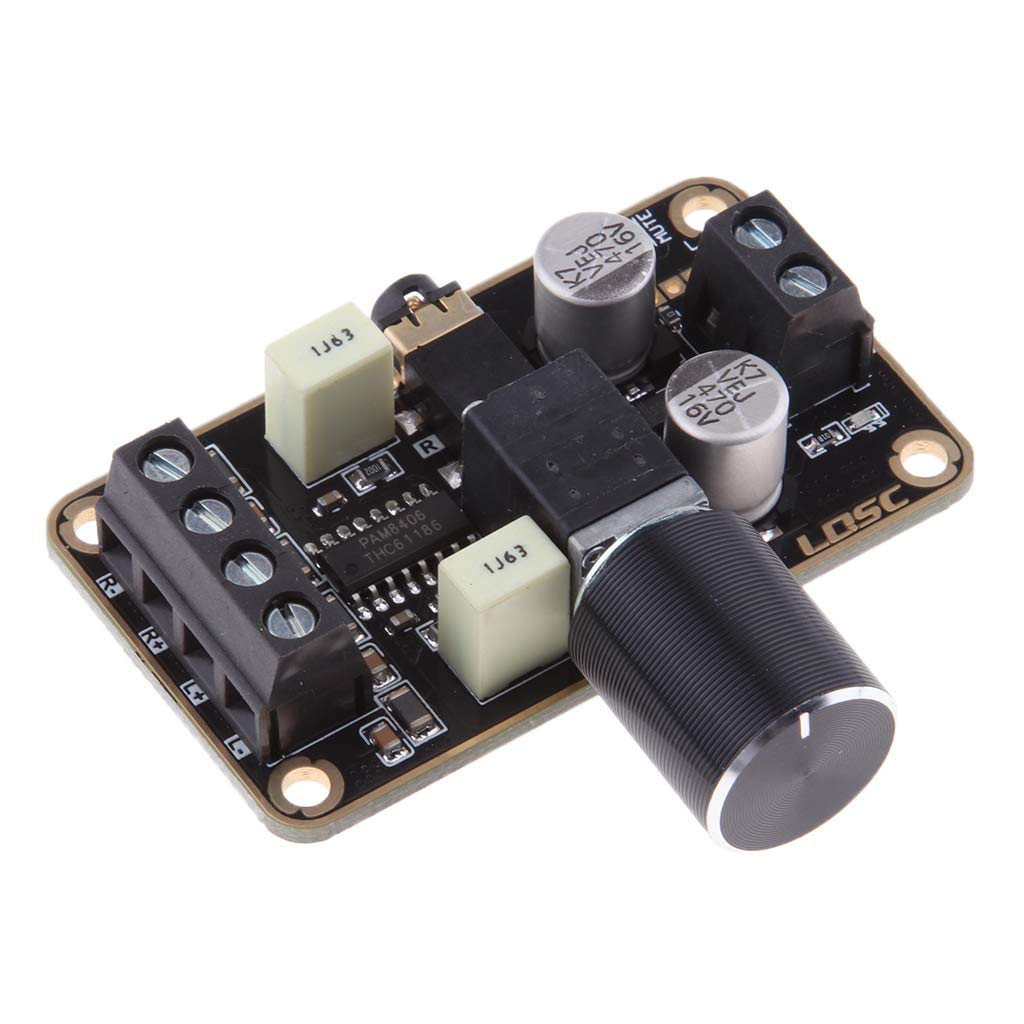

1Piece PAM8406 Stereo Amp
