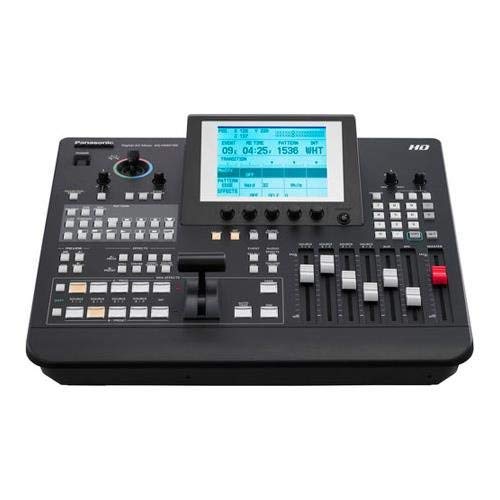

Panasonic AGHMX100PJ HD/SD Digital A/V Mixer (Black)

the settings of video and audio inputs as you can see a lot of cables are connected we will now set up the video and audio inputs first in the setup section of the audio video menu you can choose the right input for audio and video that you are going to use or the mixing by using the second rotary button select the input in the setup menu and press the Enter button the okay sign will then appear press once again the enter button the audio/video input settings screen will appear you have seven inputs on this machine with the first rotary button you can designate them with numbers from 1 to 8 while checking the video you can also update and select the buses by turning the rotary button for number one two four you can choose either SDI or composite for the video input for the audio you can choose SDI or analog you can also choose to HDMI inputs the following available slot is the DVI input
