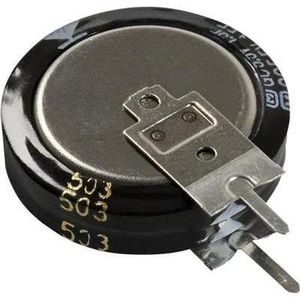

Panasonic Industrial Devices EEC-S5R5V155 Capacitor Electric Double Layer- Supercaps

conventional EDL see super capacitors have been used extensively in all kinds of electronic devices but the technology has its limits designers need more energy density higher voltages and less self discharged lithium-ion batteries provide all of this but they wear out quickly in rapid-cycle applications and the potential for thermal runaway poses safety concerns Eaton's hybrid super capacitors use proprietary materials and processing to combine the advantages of EDL CS and lithium-ion batteries inside an e d LC super capacitor are two carbon-based electrodes EDL c store energy electrostatically as ions are attracted to the surface of the electrode while charging and released while discharging this also makes them prone to high self discharge lithium-ion batteries work by moving lithium ions in and out of the crystal structure of a carbon anode this process physically wears out the batt
