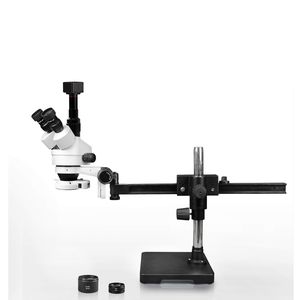

This Parco Scientific trinocular zoom stereo microscope is ideal for laboratory and industrial applications. Using its high resolution, great depth, and a large field of view, it is the perfect instrument for viewing any three-dimensional specimen or large objects.A friction collar secures the peg and allows the microscope to rotate around a vertical axis. Rotating, swivelling, and tilting functionalities allow for routine inspection of large samples not requiring constant horizontal movement of the microscope. It is built with a premium hard-coat anodized finish, making it abrasion-resistant, and giving it a hard surface.

Specifications

• Head: Trinocular, 45° inclined, rotates 360°
• Eyepiece: 10x WF / 20mm high eye point
• Zoom Range: 0.7x—4.5x, 1:6.4 zoom ratio
• Magnification Range: 7x—45x, 5x—90x with the 0.5x & 2x auxiliary Lens
• Working Distance: Up to 8” vertical; Up to 4” optical;  17” boom arm adjustable
• Stand: Gliding arm boom stand
• Light Source: 144-LED ring light with intensity control

Camera Specifications

• 5.0 megapixel (2592 x 1944 max resolution)
• Frame Rate: 38 fps (640 x 480) / 25 fps (1024 x 768) / 21 fps (1280 x 960) / 5 fps (2592 x 1944)
• JPEG, BMP image format; Windows XP, Vista, 7, 8, 10 compatible;  USB 2.0 interface

Packing List

• Trinocular zoom stereo microscope head
• Pair of 10x WF eyepieces
• Gliding arm boom stand
• Focusing arm
• Pair of eye guards
• One dust cover
• User manual
• 5x and 2x auxiliary lens
• 144-LED ring light with intensity control
• Power adaptor
• 5.0 MP digital eyepiece camera
• USB 2.0 cable
• Imaging software CD
