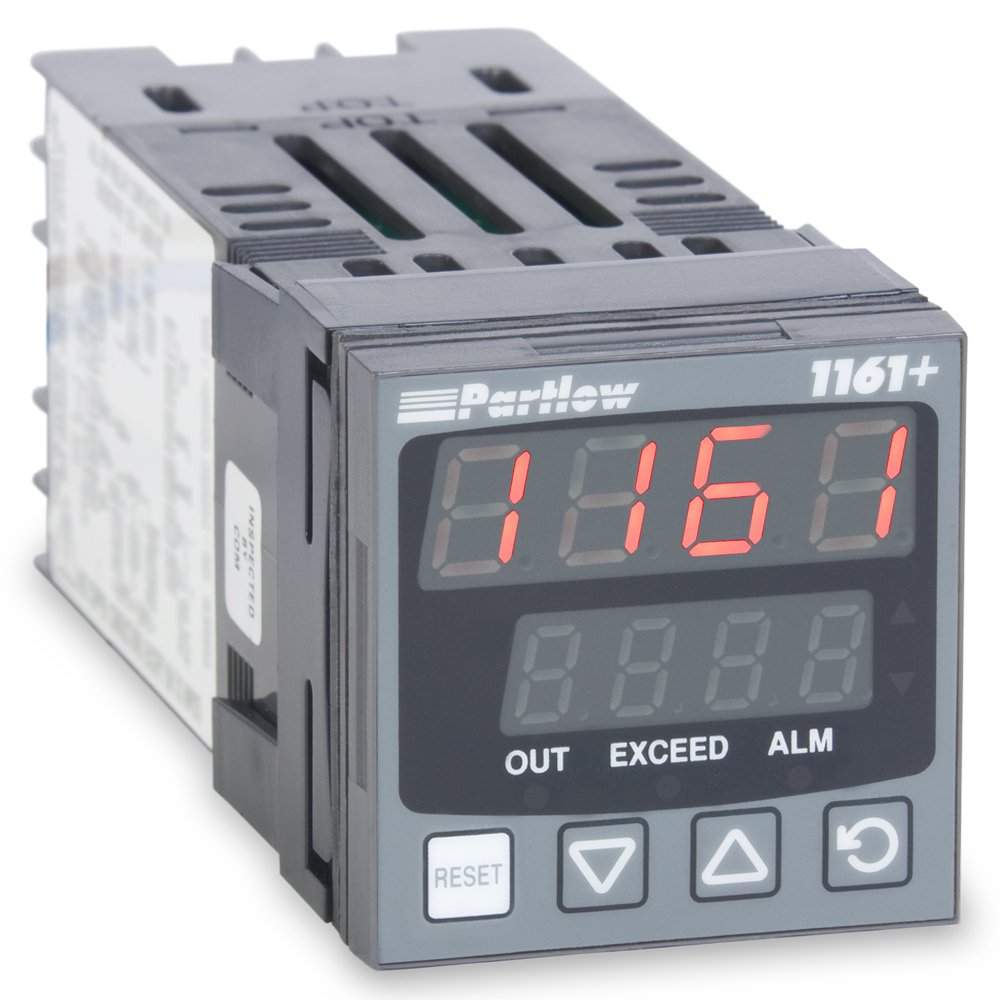

The Partlow P1161100000, part of the Partlow 1161+ product family, is a 1/16 DIN FM approved limit controller. The P1161100000 can be used as a high or low limit and provides a latched relay output when the process value exceeds the set limit. A manual reset is required once the process has returned to a safe condition. LED indicators show when limit has been exceeded and when the relay is latched out. Maximum or minimum process value and the accumulated time exceeded can be viewd on the controller. Other features of the Partlow P1161100000 include; universal input (thermocouple, RTD, mA, V), 5A/240V latching relay output, dual line 4-digit LED display, 100 to 240 VAC supply power, IP66 rated front panel, CE, CSA, UL/cUL recognized, FM approved as limit control.
