Description

Dc Voltage: 12V
Rated Current: 12.5A
Current Range: 0-12.5A
Rated Power: 150W
Ripple&Noise(Max): 200mV
Setup,Rise Time: 100ms/110VAC
Hold Up Time: 80ms/110VAC
Frequency Range: 47~60Hz
Voltage Range: 90~130VAC
Power Factor(Typ): PF>0.5
Efficiency(Typ): 80%
Safety Standards: CE Mark(LVD),IP67
Storage Temp Humidity: -40~ +80℃、10~90%RH
Working Temp: -30~ +60¡æ(Refer to output load derating curve)
Working Humidity: 20~90%RH no-condensing (Waterproof)
Emc Test Standards: EN 55015:2006; EN 61547:1995+A1:2000 ;EN 61000-3-2:2006; EN61000-3-2:1995+A2:2005 EN 61347-1：2008 EN 61347-2-13：2006

NOTE:
1. All parameters NOT specially mentioned are measured at 220VAC input, rated load and 25℃ of ambient temperature.
2. Ripple&Noise are measured at 20MHz of bandwidth by using a12'' twisted pair-wire terminated with a 0.1uf 10uf parallel capacitor.
3. Tolerance: includes set up tolerance, line regulation and load regulation.

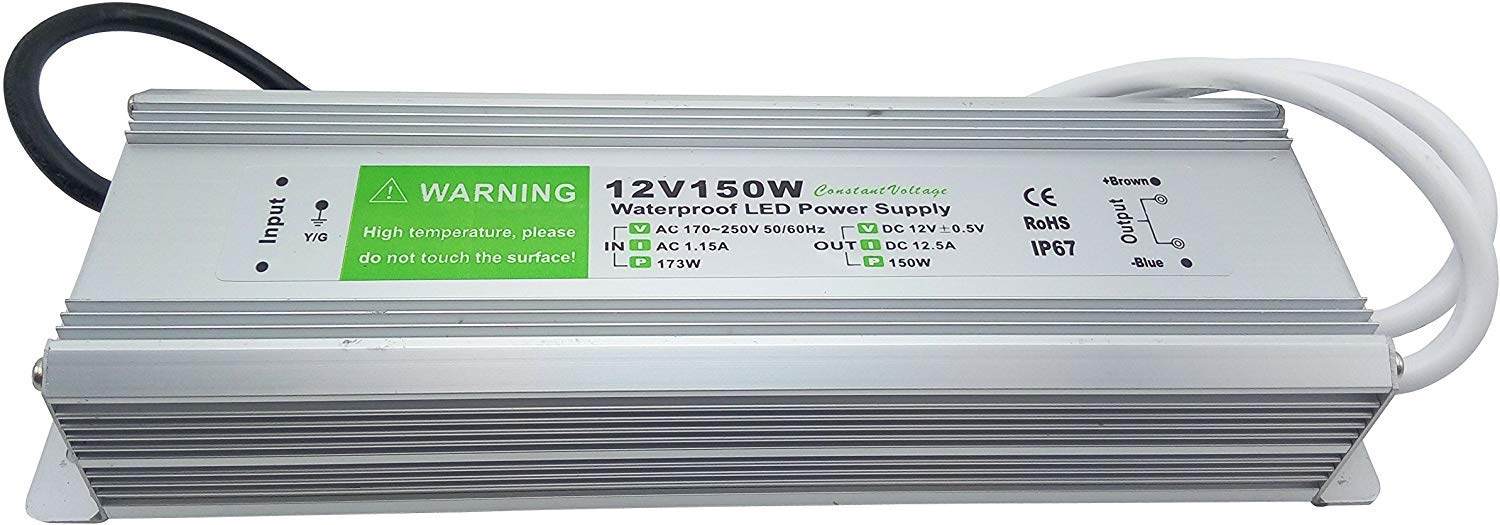

Pearlight DC 12v adapter,LED Power Supply Driver Transformer IP67 Waterproof 150w Suitable for LED lighting LED Strip Light ,LED Module and Power Accessories

Price is below average

Current Price

$39.5

Average

$42.32

Min Price

$27.04

Max Price

$45

Price dynamics

7%

Description

Dc Voltage: 12V
Rated Current: 12.5A
Current Range: 0-12.5A
Rated Power: 150W
Ripple&Noise(Max): 200mV
Setup,Rise Time: 100ms/110VAC
Hold Up Time: 80ms/110VAC
Frequency Range: 47~60Hz
Voltage Range: 90~130VAC
Power Factor(Typ): PF>0.5
Efficiency(Typ): 80%
Safety Standards: CE Mark(LVD),IP67
Storage Temp Humidity: -40~ +80℃、10~90%RH
Working Temp: -30~ +60¡æ(Refer to output load derating curve)
Working Humidity: 20~90%RH no-condensing (Waterproof)
Emc Test Standards: EN 55015:2006; EN 61547:1995+A1:2000 ;EN 61000-3-2:2006; EN61000-3-2:1995+A2:2005 EN 61347-1：2008 EN 61347-2-13：2006

NOTE:
1. All parameters NOT specially mentioned are measured at 220VAC input, rated load and 25℃ of ambient temperature.
2. Ripple&Noise are measured at 20MHz of bandwidth by using a12'' twisted pair-wire terminated with a 0.1uf 10uf parallel capacitor.
3. Tolerance: includes set up tolerance, line regulation and load regulation.
