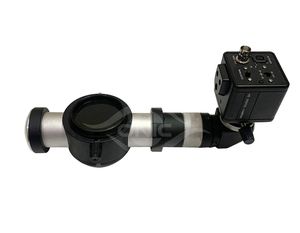

Personalised Zeiss Beam Splitter,C Mount and HD Digital Colour Camera for Zeiss Operating Surgical Microscopes

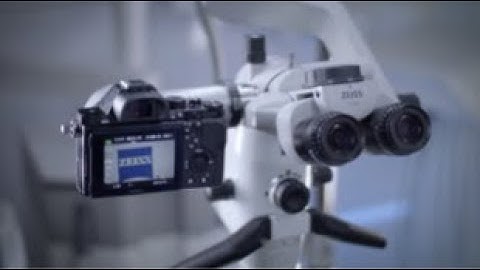

a documentation port is essential for attaching an external camera it is available on the beam splitter and optionally available on the angled optics and the mora interface zeiss provides two types of camera adapters an objective lens adapter f340 for cameras with a full frame sensor and an aps-c adapter lens for cameras with an aps-c sensor size a dedicated t2 adapter suited to the camera in use is required screw the t2 adapter onto the camera adapter and then attach the camera onto the t2 adapter open the cover of the documentation port and attach the camera adapter turn on the camera and align the image to your view of the working area make sure the system is in path an eyepiece with reticle might help you to better frame your shot to capture an image just press the trigger button or use a remote control for more stability you
