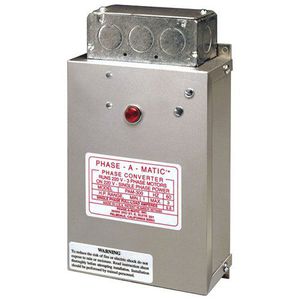

Phase Converter, Static, 8-12 Hp

hi today I'm gonna show you a new product from time Co this is the XS series static phase converter now this is a product that we've designed to be an economical solution for starting three-phase motor loads when you only have single phase power available now there are a couple things you need to know when sizing a static phase converter versus a traditional rotary first of all these are designed to work primarily with Y wound motors now this is information you're going to find on the nameplate of your motor and with a Y one motor a static phase converter is going to give you about two thirds of the rated horsepower now these will work with Delta L motors however you're only going to get about half the horsepower out of them the second thing you need to know about sizing estatic is that you need to make sure that the horsepower range that your static is rated for matches where your moto
