Description
How It Works First, the air enter the particulate filter, which has 10 micron cleanable Polyethylene element. In this stage, corrosive moisture, pipe scale, dirt and rust are removed from air line protecting the precision part in the regulator. During Stage 2, fine filtration takes place. Here, 99.7 percentage of oil aerosols and microscopic particles down to 0.3 micron absolute are removed from the air. Third Stage, the air enter a high-performance regulator, which reduces primary pressure to a desired pressure setting. Installation Install units so the airflow is in the direction "IN-OUT" as indicated by arrow on the head of the unit. Install filter first in line of additional units such as regulators or lubricators, and as close as possible to the pneumatic tools or appliances being serviced. Unit must be installed in parallel from floor, downstream position for proper function. Do not install polycarbonate bowl in pressure that exceeds 150 PSI or where there is a presence of solvents harmful to polycarbonate. In these cases, use a metal bowl. The Unit can dis-assemble or assemble using a Phillips-head screwdriver or Allen wrench. An insert feature allows simple installation and removal in any location without disturbing the existing piping arrangement. The regulator can be mounted in either up or down position. This unique design allows unlimited adaptation to air preparation systems. Unit will permit use of standard size pipe nipples. Operation & Adjustments Filtering out of dirt and foreign particles, and the separation of moisture is automatic with air flow. There are no moving parts and no adjustments are necessary. Accumulated sludge and moisture should be drained off. Sediment should not be permitted to fill above the lower baffle. Wash filter element at intervals with methylene chloride or similar cleansing fluid to maintain filtering efficiency.

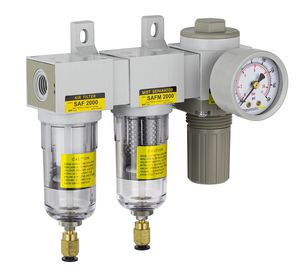

PneumaticPlus SAU2030M-N02DG Mini Three Stage Air Drying System, 1/4" NPT - Particulate Air Filter, Coalescing Filter, Air Pressure Regulator Combo - Poly Bowl, Auto Drain
Current Price
$119.99
Average
$114.61
Min Price
$109.99
Max Price
$119.99
Price dynamics
4%
Description
How It Works First, the air enter the particulate filter, which has 10 micron cleanable Polyethylene element. In this stage, corrosive moisture, pipe scale, dirt and rust are removed from air line protecting the precision part in the regulator. During Stage 2, fine filtration takes place. Here, 99.7 percentage of oil aerosols and microscopic particles down to 0.3 micron absolute are removed from the air. Third Stage, the air enter a high-performance regulator, which reduces primary pressure to a desired pressure setting. Installation Install units so the airflow is in the direction "IN-OUT" as indicated by arrow on the head of the unit. Install filter first in line of additional units such as regulators or lubricators, and as close as possible to the pneumatic tools or appliances being serviced. Unit must be installed in parallel from floor, downstream position for proper function. Do not install polycarbonate bowl in pressure that exceeds 150 PSI or where there is a presence of solvents harmful to polycarbonate. In these cases, use a metal bowl. The Unit can dis-assemble or assemble using a Phillips-head screwdriver or Allen wrench. An insert feature allows simple installation and removal in any location without disturbing the existing piping arrangement. The regulator can be mounted in either up or down position. This unique design allows unlimited adaptation to air preparation systems. Unit will permit use of standard size pipe nipples. Operation & Adjustments Filtering out of dirt and foreign particles, and the separation of moisture is automatic with air flow. There are no moving parts and no adjustments are necessary. Accumulated sludge and moisture should be drained off. Sediment should not be permitted to fill above the lower baffle. Wash filter element at intervals with methylene chloride or similar cleansing fluid to maintain filtering efficiency.
Price will be lower
in next 2 weeks
in next 2 weeks
According to the data, price will be lower in next two weeks, so not waste your money and track better price!
