This micro sized step-up/step-down voltage regulator is perfect for supplying 12v power (from a higher voltage source like 4s or 5s Lipo or even a lower voltage like 2s or 3s) to your FPV gear that needs specifically 12v power. Power 12v flight cameras, LED lights or other gear that can only run on 12v.

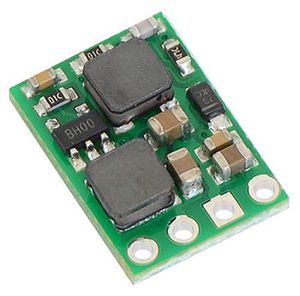

This switching regulator uses the SEPIC topology to produce 12 V from input voltages between 2.5 V and 18 V. The wide input range coupled with its ability to convert both higher and lower input voltages makes it useful for applications where the power supply voltage can vary greatly, as with batteries that start above but discharge below 12 V. The compact (0.4″ × 0.575″) module can supply over 200 mA in typical applications.

• Input voltage: 2.5 V to 18 V (can be higher than, the same as, or lower than the 12 V output)
• Fixed 12 V output with 4% accuracy
• Typical continuous output current: 200 mA (Up to 300 mA on 4s battery)
