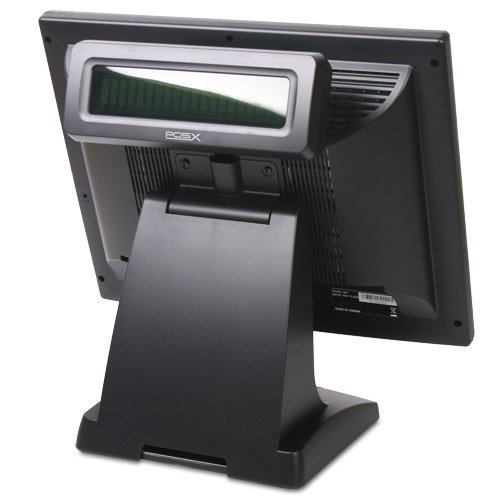

POS-X ION-RD2-VFD VFD Rear Display for ION-TP2/TM2

hello and welcome back to POSIX labs today we'll be going over the process for attaching a rear display to an EBO tp2 POS terminal that's an EVO rd 28 inch rear display to an EVO tp2 POS terminal for this task what you'll need is a rear display remember your display should come with a backing bracket an attachment bracket a VGA cable a power cable for flathead screws two or four standard machine screws and then one silver machine screw will take an EVO tp2 POS terminal which will also be necessary and finally last but not least we'll need our trusty number two phillips screw driver preferably with a magnetic tip the first thing we're going to do is take our backing bracket and attach it to our LCD display using our four flat head screws there's only one way the bracket can mount to the rear display so that the screw holes line up so you shouldn't have any problem there at this point we'
