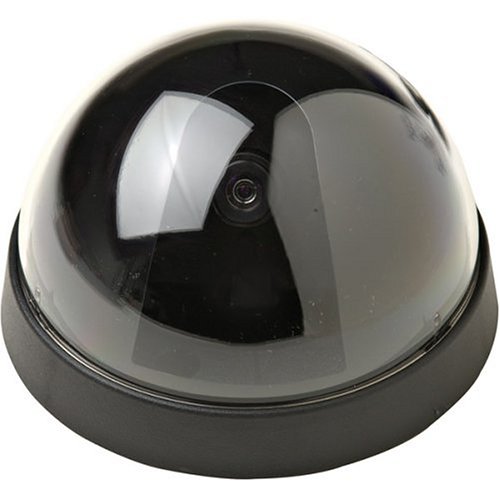

This dome camera utilizes a 0.33-inch black-and-white CCD (charge-coupled device) sensor with a 3.6-millimeter wide-angle lens, and provides 512-by-492 effective pixels. The CVC-185DC has a high resolution of 420 horizontal TVL (TV lines), is extremely sensitive to light with a minimum illumination of 0.02 Lux, and achieves a S/N (signal-to-noise) ratio of 48 dB or better. The Pro Video CVC-185DC uses the EIA (Electronics Industries Association) scanning system, and includes a standard BNC (Bayonet Neill-Concelman) video output. This unit runs on 12-volts DC power, and can operate in temperatures ranging from 14 to 113 degrees Fahrenheit. The CVC-185DC comes complete with a built-in automatic electronic shutter with speeds ranging from 1/60 to 1/100,000 of a second.

Technical Features:

• S/N ratio: better than 48 dB
• Sensitivity: minimum illumination of 0.02 Lux
• Effective pixels: 512 by 492 pixels
• Horizontal resolution: 420 TVL
• Operating temperatures: 14 to 113 degrees Fahrenheit
• Dimensions: 4 x 2.5 inches (diameter x depth)
