Overview:
Perfectly suited for your desktop or a smaller space in your home or office.
The audio amplifier is easy to connect to your Mac or PC with no software to install or settings to change.
One easy to use power switch turns the on/off, and adjusts the volume, with no need for other buttons or knobs. Notce:
1. We use new power socket, and there are no sparks flying when power supply plug in, safe and solid.
2. The amp will off when you switch off, but it's normal that the power LED light stay on even switch off, the power LED light on means the power supply in.
3. How to judge whether the noise from the amplifier
Unplug the RCA cable, connect this amp to speakers, and then plug into the power supply, power on and volume on, hear whether noise exists on speakers.
If noise existed, the noise may from speakers or amp, so you need to change speakers for further confirmation. If no noise the noise may from the audio source.
Feature:
Adopt Texas Instruments TPA3116D2 Chip
With 24V 4A Power Supply
With bass and treble control
New DC socket, no sparks flying when power supply plug in
Specification:
Power supply range: 12v-25v
THD: ≤ 0.5%
Frequency Range: 20Hz - 20kHz (±1 dB)
SNR: ≥ 98dB
Input sensitivity: ≤ 280mV
Terminating impedance: 2Ohm - 8Ohm
Output power: 50W + 50W
Input mode: RCA Analog
Power supply: 24V/4A 96W

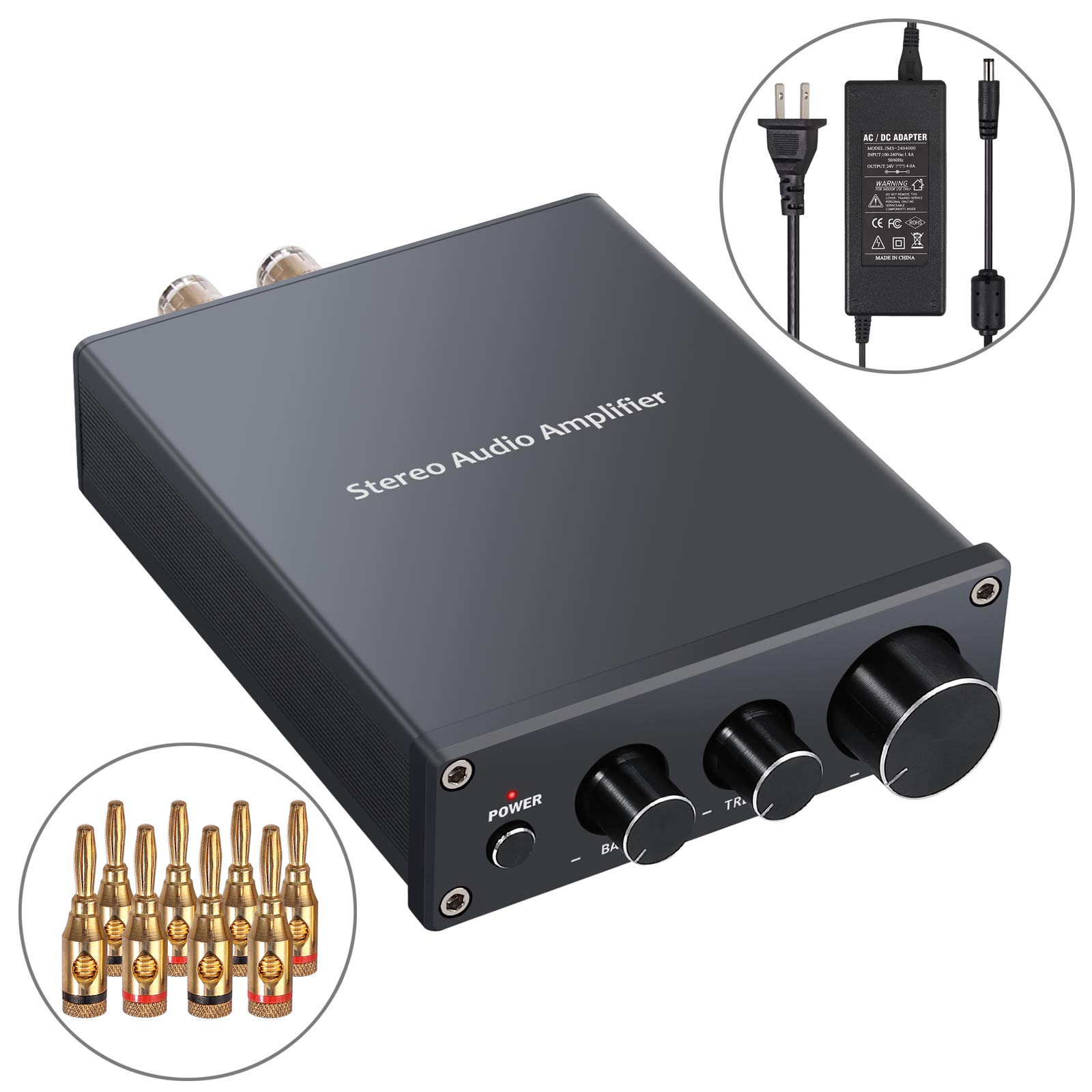

Package Content:
1 x Audio Amplifier
8 x Speaker Banana Plugs
1 x Power supply
1 x AC power cord
1 x User's Manual
