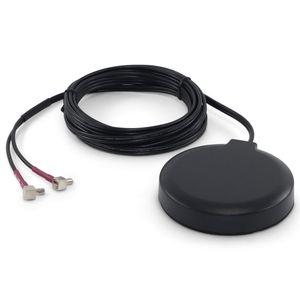

This extremely low profile (< 0.6 inches tall) fixed mount omni-directional antenna provides up to 2.5 dBi of gain and works on all 3G & 4G cellular frequency bands worldwide (all CDMA, GSM, WCDMA/UMTS and LTE carriers).Includes 3M adhesive pad and strong internal magnet for flexible mounting options. IP67 waterproof.
Designed for M2M applications such as vending machines, meter housings, equipment sheds, or other locations requiring an inconspicuous low-profile external antenna. Can also be vehicle mounted for buses, vans, trucks or other mobile installations.
Dual integrated TS9 male plug connectors mate with TS9 female jacks on MIMO capable modems, hotspots, routers, etc. Also available with SMA male plugs (see part# ANT-122-M01)
Key Specifications
• Frequencies: 698~960 & 1710~2690 MHz
• Impedance: 50 ohms
• Peak Gain: 2.5 dBi
• Radiation Pattern: Omni
• Polarization: Linear
• Ground Plane: Integrated
• Coax Cable: 10 ft low-loss RG174
• Connectors: TS9 Male
• Operating Temp: -40C to +85C
• Radome Material: ABS
• Ingress Protection: IP67
• Height: 0.6 inches / 15 mm
• Diameter: 3.15 inches / 80 mm
BUY WITH CONFIDENCE: USA-based Proxicast has been designing and building innovative electronic products since 2000 -- Includes 12 month Warranty & US-based Technical Support.
