Description

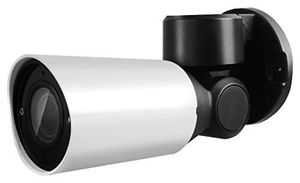

Real PTZ, 4X Optical Zoom, 220 Presets, Support Pattern scan,Preset scan,horizontal scan.
IMORTANT: Make Sure you have a PTZ Controller or your DVR supports "UP-THE-COAX" UTC control before purhcase otherwise PTZ feature will NOT work!
Specification
Camera
Sensor:1/3" CMOS 2MP SONY323
Output pixel:1920x1080/30fps,1920x1080/25fps
Lens:4X f=2.8~12MM
BLC:Support
AGC:Auto/Manual
WB:Indoor/Outdoor/Auto/Manual
S/N Ratio:>50dB
PTZ
Rotation Range:Pan: 0°~160º , Tilt: 0°~55º
Rotation Speed:Pan: 0~25°/s , Tilt: 0~20°/s
Auto Flip:Support
Preset Points:220pcs preset( Dwell time 01-60s interval available)
Guard Tours:3 groups ( each group 16 preset、dwell time and speed selectable)
AB scan range:Support, 0~160º
AB scan speed:1-9 grades
Signal Transfer:AHD/CVI/TVI/CVBS selectable
Operating temperature:-30℃~+60℃
Auto Control IR LED:PWM
Consumption:≤10W
Lightning Protection:Transient voltage 6000V
Related validation:IP66,CE,FCC,RoHs
IR parameters:
Auto Control IR LED：PWM
IR distance：up to 50 meters
LEDs：6 PCS Array 30Mil LED
This 4-in1 camera is fully compatible for the following HD DVRS:
Hikvision, Dahua, GW, LTS, Q-see, Swann, Samsung, Night Owl, Best Vision, HD View,
HQ-CAM, Annke, Aposonic, I-DVR Pro, Vonnic, Digital Watchdog, Logisaf, Sannce,
Venetech, Speco, Alibi, KT&C, Cantek, ZOSI and many more.
