Image Sensor :1/2.8" Progressive Scan CMOS
Effective Pixel:1920(H) ×1080(V)
Min. Illumination:Color: 0.05Lux @ (F1.6, AGC On), B/W: 0.01Lux @ (F1.6, AGC On)
White Balance:Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp
AGC:Auto / Manual
S / N Ratio:≥ 52dB
Digital Noise Reduction:3D DNR
Backlight compensation:BLC
Wide Dynamic Range:Digital WDR
Defog:Support
Shutter Speed:1 ~ 1/10,000s
Day & Night:IR Cut Filter
Digital zoom:16X
Focus Mode:Auto / Semiautomatic / Manual
Privacy Mask:2 privacy masks programmable
Focal Length:4.7-94mm, 20x
Zoom Speed:Approx 3s(Optical Wide-Tele)
Angle of View:58.3 ~ 3.2 degree (Wide-Tele)
Min. Working Distance:10 ~1000mm (Wide-Tele)
Aperture Range:F1.6 ~ F3.5
Pan / Tilt Range:Pan: 360° endless; Tilt: -2° ~ 90° (Auto Flip)
Pan / Tilt Speed:Pan manual speed: 0.1° ~ 160°/s, Pan preset speed: 160°/s
Tilt manual speed: 0.1° ~ 120°/s, Tilt preset speed: 120°/s
Proportional Zoom:Rotation speed can be adjusted automatically according to zoom multiples
Number of Preset:256
Park action:Pattern/Pan scan/Tilt scan/Frame scan/Panorama scan/Random scan
Patrol:8 patrols, up to 32 presets per patrol
Power-off Memory:Support
PTZ position display:On / off
Preset freezing:Support
Alarm input / output:1 input 0-5V DC/1 relay output,alarm response actions configurable
Audio input / putput:1 mic/Line in, 2-2.4V[p-p]; output impedance: 1KΩ, ±10% / 1 output, Line level, impedance: 600Ω
Ethernet:10Base-T / 100Base-TX, RJ45 connector
Max. Image Resolution:1920×1080
Frame Rate:60Hz: 30 fps (1920×1080), 30 fps (1280×720)

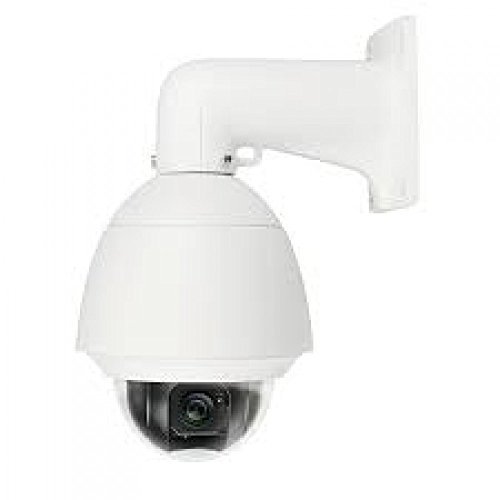

PTZIP212X20 2MP Full HD 1080p IP PTZ Camera
Image Sensor :1/2.8" Progressive Scan CMOS
Effective Pixel:1920(H) ×1080(V)
Min. Illumination:Color: 0.05Lux @ (F1.6, AGC On), B/W: 0.01Lux @ (F1.6, AGC On)
White Balance:Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp
AGC:Auto / Manual
S / N Ratio:≥ 52dB
Digital Noise Reduction:3D DNR
Backlight compensation:BLC
Wide Dynamic Range:Digital WDR
Defog:Support
Shutter Speed:1 ~ 1/10,000s
Day & Night:IR Cut Filter
Digital zoom:16X
Focus Mode:Auto / Semiautomatic / Manual
Privacy Mask:2 privacy masks programmable
Focal Length:4.7-94mm, 20x
Zoom Speed:Approx 3s(Optical Wide-Tele)
Angle of View:58.3 ~ 3.2 degree (Wide-Tele)
Min. Working Distance:10 ~1000mm (Wide-Tele)
Aperture Range:F1.6 ~ F3.5
Pan / Tilt Range:Pan: 360° endless; Tilt: -2° ~ 90° (Auto Flip)
Pan / Tilt Speed:Pan manual speed: 0.1° ~ 160°/s, Pan preset speed: 160°/s
Tilt manual speed: 0.1° ~ 120°/s, Tilt preset speed: 120°/s
Proportional Zoom:Rotation speed can be adjusted automatically according to zoom multiples
Number of Preset:256
Park action:Pattern/Pan scan/Tilt scan/Frame scan/Panorama scan/Random scan
Patrol:8 patrols, up to 32 presets per patrol
Power-off Memory:Support
PTZ position display:On / off
Preset freezing:Support
Alarm input / output:1 input 0-5V DC/1 relay output,alarm response actions configurable
Audio input / putput:1 mic/Line in, 2-2.4V[p-p]; output impedance: 1KΩ, ±10% / 1 output, Line level, impedance: 600Ω
Ethernet:10Base-T / 100Base-TX, RJ45 connector
Max. Image Resolution:1920×1080
Frame Rate:60Hz: 30 fps (1920×1080), 30 fps (1280×720)
