Description
12X Optical Zoom | 3G-SDI, HDMI, CVBS, IP Streaming | 1920 x 1080p | 72.5 degree FOV (Gray) PoE & US Style Power Specifications: Camera & Lens Video Sensor: 1/2.7 inch CMOS, 2.12 Mega Pixels Frame Rates: 1080p/60, 50, 30 & 25, 1080i/60 & 50, 720p/60, 50, 30 & 25 Frame Rates: (CVBS) 576i/30, 480i/30 Focal Length: 12x, -42.3mm, F1.8-F2.8 Lens Zoom: 12x Field of View: 72.5° Min Lux: 0.5 Lux at F1.8, AGC ON Shutter Speed: 1/30s - 1/10000s SNR: ≥55dB Horizontal Angle of View: 6.9° (tele) to 72.5° (wide) Vertical Angle of View: 3.9° (tele) to 44.8°(wide) Working Environment Specifications: Indoor Pan Movement: ±170° Tilt Rotation Up: 90°, Down: 30° Presets: 10 via IR (255 via Serial or IP) Rear Board Video Output: HDMI, 3G-SDI, IP Streaming, CVBS Network Interface: RJ45 Audio Interface: Line In, 3.5mm (USB & IP Stream Only) Communication: RS-232, RS-485, PELCO-D/P Baud Rate: 2400/4800/9600 bits Power Supply: JEITA type Power Adapter (DC IN 12V) 3G-SDI Interface: BNC - 75 Ohm, Female USB 2.0 Interface: Future Use Physical Power Supply: 12W (Max) Input Voltage: 12V DC (10.8 - 13.0V DC) or PoE 802.3af Dimension (in.): 5.6 W x 6.5 H x 6.7 D (7.8H max w/ Tilt) Dimensions (mm): 142 W x 164 H x 169 D (198H max w/ Tilt) Box Dimensions: 9 inch x 9 inch x 10 inch (229 mm x 254 mm x 229 mm) Camera Weight: 3.05 lbs. (1.38 kg) Boxed Weight: 5.4 lbs. (2.45 kg)

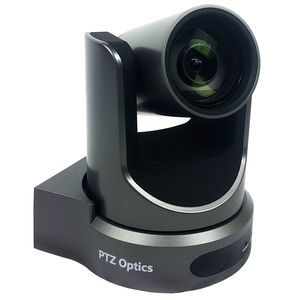

PTZOptics 12X-SDI GEN-2 PTZ IP Streaming Camera with Simultaneous HDMI
Current Price
$1 599
Average
$1 496.66
Min Price
$470
Max Price
$2 317.29
Price dynamics
6%
Description
12X Optical Zoom | 3G-SDI, HDMI, CVBS, IP Streaming | 1920 x 1080p | 72.5 degree FOV (Gray) PoE & US Style Power Specifications: Camera & Lens Video Sensor: 1/2.7 inch CMOS, 2.12 Mega Pixels Frame Rates: 1080p/60, 50, 30 & 25, 1080i/60 & 50, 720p/60, 50, 30 & 25 Frame Rates: (CVBS) 576i/30, 480i/30 Focal Length: 12x, -42.3mm, F1.8-F2.8 Lens Zoom: 12x Field of View: 72.5° Min Lux: 0.5 Lux at F1.8, AGC ON Shutter Speed: 1/30s - 1/10000s SNR: ≥55dB Horizontal Angle of View: 6.9° (tele) to 72.5° (wide) Vertical Angle of View: 3.9° (tele) to 44.8°(wide) Working Environment Specifications: Indoor Pan Movement: ±170° Tilt Rotation Up: 90°, Down: 30° Presets: 10 via IR (255 via Serial or IP) Rear Board Video Output: HDMI, 3G-SDI, IP Streaming, CVBS Network Interface: RJ45 Audio Interface: Line In, 3.5mm (USB & IP Stream Only) Communication: RS-232, RS-485, PELCO-D/P Baud Rate: 2400/4800/9600 bits Power Supply: JEITA type Power Adapter (DC IN 12V) 3G-SDI Interface: BNC - 75 Ohm, Female USB 2.0 Interface: Future Use Physical Power Supply: 12W (Max) Input Voltage: 12V DC (10.8 - 13.0V DC) or PoE 802.3af Dimension (in.): 5.6 W x 6.5 H x 6.7 D (7.8H max w/ Tilt) Dimensions (mm): 142 W x 164 H x 169 D (198H max w/ Tilt) Box Dimensions: 9 inch x 9 inch x 10 inch (229 mm x 254 mm x 229 mm) Camera Weight: 3.05 lbs. (1.38 kg) Boxed Weight: 5.4 lbs. (2.45 kg)
Price will be lower
in next 2 weeks
in next 2 weeks
According to the data, price will be lower in next two weeks, so not waste your money and track better price!
Product review & video
When you first receive your PTZOptics SDI Camera, the first thing you should do is read the included manual. Inside your box you will find your camera, the manual, the power supply, a remote control, two AAA batteries and a serial connection cable used for joystick controllers.
Once you have read the manual, it is helpful to select the video resolution and frame rate you would like to use with your camera. The camera's resolution is set by a yellow dial on the back Interface board of the camera. You can reference the available frame rates in your manual or on a table printed on the bottom of your camera. NOTE: The default dial setting is “0” which is 1080p60fps. This is ideal for sports but you may want to consider setting “6” for 1080p30fps for the classic natural video look depending your application. Once you have set your resolution dial, can turn on your PTZOptics camera. If your
