Description
The Purple Audio Action features a constant impedance 600 ohm input attenuator feeding the input transformer, just like our MC77 units. This makes the input more resistant to overload by hot signals. After the input transformer, the signal is attenuated by the same gain reduction FET as in the MC77. The attenuated signal is buffered by our class A KDJ3 opamp, which feeds the output fader. Lastly, our class AB KDJ4 output opamp drives our custom hexafilar nickel and steel output transformer. The total gain (with no attenuation) is 45dB, just like the MC77.
The Purple Audio Action Features:
- Input attenuator feeding input transformer
- Output level control
- Input and output tricolor LED metering
- Eight LED GR metering
- Five ratios including "All buttons in" mode
- Attack and Release controls
- True Relay Bypass
- Stereo Linking
- Compression on/off switch
- Discrete signal path
- Over Current Resettable Fused (prevents any module problem from affecting your rack)
- ROHS - Lead Free Specifications:
- Total Gain: 45dBu
- Ratios: 4:1, 8:1, 12:1, 20:1, :1 ("All buttons in")
- Attack time: Continuously Variable from over 800 microseconds to 20 microseconds
- Release time: Continuously Variable from over 1.1 seconds to 50 milliseconds
- Input impedance: 600 ohms
- Output impedance: 600 ohms
- Current consumption: 90ma
The Purple Audio Action Features:
- Input attenuator feeding input transformer
- Output level control
- Input and output tricolor LED metering
- Eight LED GR metering
- Five ratios including "All buttons in" mode
- Attack and Release controls
- True Relay Bypass
- Stereo Linking
- Compression on/off switch
- Discrete signal path
- Over Current Resettable Fused (prevents any module problem from affecting your rack)
- ROHS - Lead Free Specifications:
- Total Gain: 45dBu
- Ratios: 4:1, 8:1, 12:1, 20:1, :1 ("All buttons in")
- Attack time: Continuously Variable from over 800 microseconds to 20 microseconds
- Release time: Continuously Variable from over 1.1 seconds to 50 milliseconds
- Input impedance: 600 ohms
- Output impedance: 600 ohms
- Current consumption: 90ma

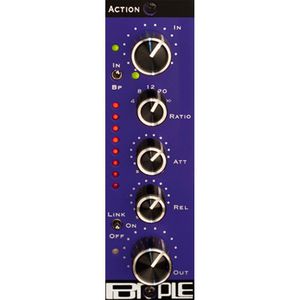

Purple Audio Action FET Compressor
