Description
Operation Mode
- CVBS:Up/Up
- CVI:Up/Down
- AHD:Down/Up
- TVI:Down/Down
- Problem:Image normal in the day while vague or being interfered by horizontal stripes at night
Solution:It is the reason that power is not enough or power cable is too long.Change power
supply or shorten power cable. - Problem:No image
Solution:There are three reasons:if it is Wrong connection to the video cable,you need
reconnect;if power gets problem,you need change power supply;if having not connected to
power supply,you need to plug in.
- Image Device 1/2.8" SONY Exmor Progressive Scan CMOS Sensor, 2.4MP
- Effective Pixels 1920(H) x 1080(V)
- TV System PAL/NTSC (OSD)
- Day/Night External (default)/Auto/Color/B&W (OSD)
- S/N Ratio =72dB
- Min. Illumination 0.01Lux, 0Lux with IR on
- BLC AUTO
- Electronic Shutter AUTO/ 1/50(1/60)-1/50,000sec
- AWB AUTO
- OSD Manual button / UTC
- Video Out TVI / CVI / AHD / CVBS switchable * 1080P@30fps TVI (default)
- Lens MP 3.6mm
- LED Quantity 24pcs F5 IR 850nm LED
- IR Distance 45 - 75ft
- Water Proof Rating IP67
- Power DC12V 300mA
- Operation Temp. Temp. 14F to 122F
- Dimension 3.70in x 2.63in
- Weight 0.94LBS

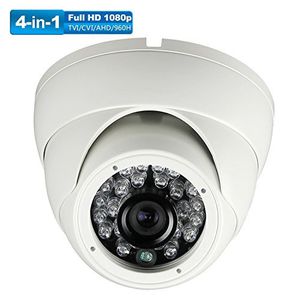

Universal Dome Security Camera 1080P 4 in1 (TVI, AHD, CVI, CVBS) 3.6mm Fixed 2.4MP Image Sensor Day/Night 65ft IR Distance Indoor & Outdoor IP 67 Waterproof Surveillance camera
Current Price
$38.99
Average
$32.66
Min Price
$28.99
Max Price
$38.99
Price dynamics
16%
Description
Operation Mode
- CVBS:Up/Up
- CVI:Up/Down
- AHD:Down/Up
- TVI:Down/Down
- Problem:Image normal in the day while vague or being interfered by horizontal stripes at night
Solution:It is the reason that power is not enough or power cable is too long.Change power
supply or shorten power cable. - Problem:No image
Solution:There are three reasons:if it is Wrong connection to the video cable,you need
reconnect;if power gets problem,you need change power supply;if having not connected to
power supply,you need to plug in.
- Image Device 1/2.8" SONY Exmor Progressive Scan CMOS Sensor, 2.4MP
- Effective Pixels 1920(H) x 1080(V)
- TV System PAL/NTSC (OSD)
- Day/Night External (default)/Auto/Color/B&W (OSD)
- S/N Ratio =72dB
- Min. Illumination 0.01Lux, 0Lux with IR on
- BLC AUTO
- Electronic Shutter AUTO/ 1/50(1/60)-1/50,000sec
- AWB AUTO
- OSD Manual button / UTC
- Video Out TVI / CVI / AHD / CVBS switchable * 1080P@30fps TVI (default)
- Lens MP 3.6mm
- LED Quantity 24pcs F5 IR 850nm LED
- IR Distance 45 - 75ft
- Water Proof Rating IP67
- Power DC12V 300mA
- Operation Temp. Temp. 14F to 122F
- Dimension 3.70in x 2.63in
- Weight 0.94LBS
