Description
BLE4.0 Bluetooth 2.4G Development/Evaluation Kit designed for nRF51822
Overview

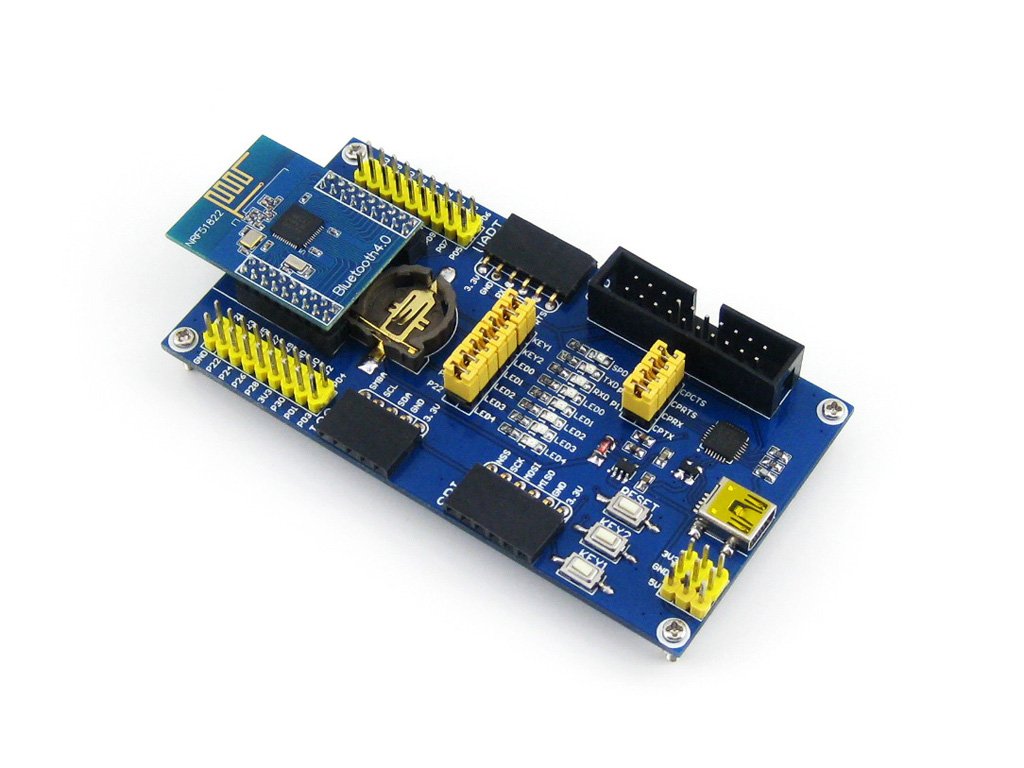

NRF51822 Eval Kit is a development/evaluation kit designed for nRF51822, consists of the mother board BLE400 and the wireless module Core51822.
BLE400 Features
Onboard battery holder, multi power supplies are available
All the IOs are accessible for easy expansion
Integrates CP2102 for debugging
LEDs and user keys, compatible with other official boards, easy to use
Core51822 Specifications
Onboard chip: nRF51822
Communication distance (open outdoor@1M data rate): 30m
Frequency range: 2.4GHz
Operating voltage: 2.0V ~ 3.6V
Operating temperature: -40℃ ~ 85℃
Dimension (PCB): 24.5mm x 32.26mm
Expansion pinheader: all the I/Os except P0.26 and P0.27
Pinheader pitch: 2.00mm
Spacing between pinheaders on the left side and the right side: 18.00mm
Antenna: onboard antenna
nRF51822 Features
2.4 GHz multiprotocol RF transceiver
ARM Cortex-M0 32 bit processor
128 bit AES HW encryption
256kB flash & 32kB RAM
Programmable Peripheral Interconnect (PPI)
Digital interfaces: SPI, I2C, UART
10 bit ADC
Programmable output power: -20 to +4 dBm
Independent application development and protocol stack
Fully compatible with NRF24L series
Pinout compatible with NRF51xxx series
Global separate power managementv
Operating voltage: 1.8 V ~ 3.6 V
Applications
Wearable devices
Bluetooth intelligent application
Mobile phone accessories
RFID labels
Smart home appliances
Industry control
Data acquisition system
Resources: www.waveshare.com/wiki/NRF51822_Eval_Kit?amazon
