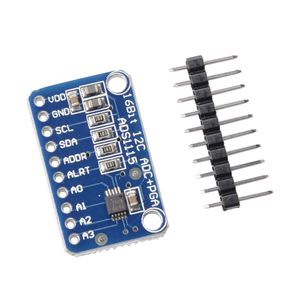

Qunqi ADS1115 16 Byte 4 Channel I2C IIC ADC Module Precised Analog Digital Converter Develop Board for Arduino Raspberry Pi

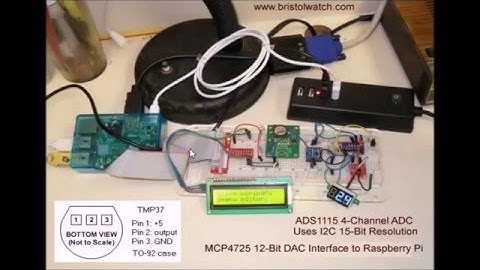

alright let's get started on this little video you see a picture of my test setup and I'm going to describe it as such over here of course is a raspberry pi 2 or 3 in this case I use my raspberry pi 2 this is a GPIO breakout board this is a ds1308 which is not the subject of this video two other videos will cover the i2c LCD display down here the other video will cover this this is an MCP 47 25 that's a 12 bit DAC that will be interfaced to the Raspberry Pi the main subject we're going to be looking at is right here with the little purple board it's an ADF 11:15 it's a programmable four channel analog to digital converter that's used under the i2c protocol this little device this little transistor looking thing if you see it here is the TMP 37 centigrade temperature sensor the idea that this demo I'm going to walk you through the software and how to program the a ds-11 15 is it's going
