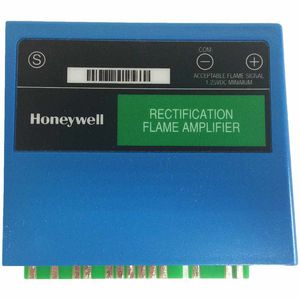

R7847A1082 Honeywell Flame Amplifier, Rectification., FFRT: 2,3sec.R7847 A 1082

hey guys this is the EC seven-second today what we're looking at is the flame ratification process I want to describe how that flame ratification process is happening here but basically you have this wire right here this wire right here attaches to a flame center rod okay all this is is a stainless steel rod and this right here is porcelain and or ceramic and basically what has happened what's what it's doing is its isolating the rod and the voltage that the Control Board or module is putting into the the burner or flame area its isolating that from the ground all right because you want to put the AC voltage into the flame all right when you do that when you put 90 to 110 volts into the flame the actual voltage rectifies okay and and it's going to go towards the larger surface area all right which in this case is going to be the burner retention head inside this this box right here so r
