AC input :
Input voltage : 90 to 264VAC OR 120 to 380VDC
Input frequency : 47 to 63Hz
Inrush current : 40A / 220VAC

DC output :
Output voltage : 24VDC
Output current : 0 to 20.0A
Ripple and noise : 240mV
Output power : 480W
Over-voltage protection : 31.4 to 34.7 DC
Efficiency : 93% ref

Output voltage : ±10% (adjustable)
Short-protection : Re-power on to recover
Overload protection : short-circuit protection
Operating temperature : -15 to 50°C
Safety standards : UL508
CE standards : EN 55032, EN 55024, EN 61000-3-2, EN 61000-3-3, (EN 61000-4-2, 3, 4, 5, 6, 8, 11), EN 62368-1:2014, Heavy Industrial level, criteria A

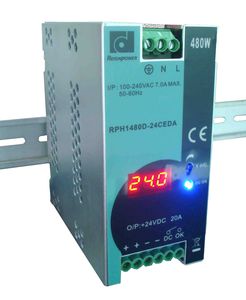

Traditionally, right range of output power of power supply can only be indicated by LED. However, this method is quite simple and rough, and is unable to display precisely, causing user cannot determine the cause of system failure. Reign Power din rail switching power supply monitors voltage which shows real time power stability. The solution can be intuitive and quick to decide whether the power products is running normally or not. As the result, can let the non-professional client directly determine product status and report back the reason is related to whether power quality or not. This can accelerate product maker services to client and get the reputation from market.
